Skycut D48 Double Head Cutting Plotter
Industrial Strength Precision Cutting with Dual-Tool Versatility for large format digital cutting machine applications.
A 48-inch dual-head cutter for larger box samples, display packaging, and wide vinyl graphics, with 2000 g of force and a camera.

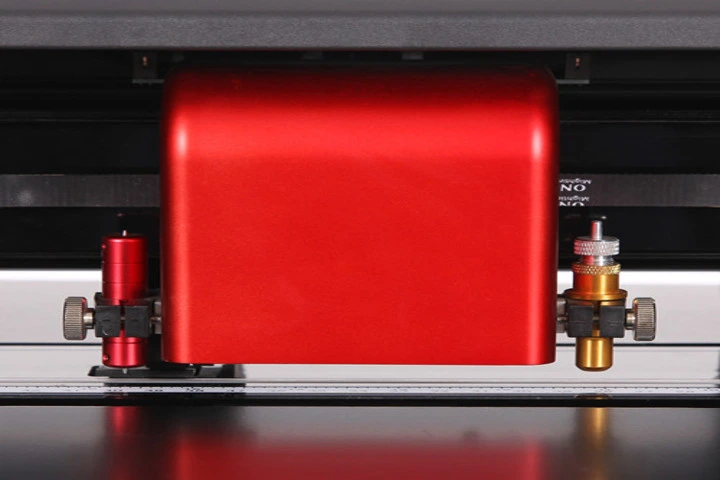

The D48 is the wider version of our dual-head D-series. One head cuts while the other creases or draws, so it can make larger display boxes and packaging samples as well as wide vinyl graphics.
The heads apply up to 2000 g, and the camera handles contour cutting on printed media. Talk to us about the cutting width you need. For 24-inch work, the D24 dual-head cutter takes up less space.
Max Media Width
720mm
Max Cutting Width
560mm
Max Contour Cutting Width
450mm
Packing Size
1000*360*388mm
Packing Gross Weight
18.5kg
Max Force
2000g
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 720mm |
| Max Cutting Width | 560mm |
| Max Contour Cutting Width | 450mm |
| Packing Size | 1000*360*388mm |
| Packing Gross Weight | 18.5kg |
| Max Force | 2000g |
| Number of Heads | 2 |
| Floor Stand | option |
| Auto Contour Cut | Camera |
| CorelDRAW Directly | Yes |
| Power Supply, V/Hz | 220/50 |
| Laser Engrave Option | No |
| Scratch Engrave | Yes |
| Motor | Stepper |
| Processor Memory | 128MB |
| Cutting Precision | +/- 0.01mm |
| Repeat Precision | 0.082 mm |
| Max Moving Speed | 700mm/s |
The D48 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut D48 Stencil Cutting: Dual Head Cutting Plotter
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the D48.
Folding Cartons & Display Boxes
Large tuck-end boxes, mailers, counter displays, and product sleeves — crease and cut wide dielines on this box making machine before full production.
Rigid Boxes & Gift Packaging
Cut and score large board panels for rigid boxes, gift boxes, and premium packaging samples — ideal for agencies and packaging studios.
Stickers, Vinyl & Labels
Die-cut stickers, wide vinyl decals, product labels, and kiss-cut sheets — contour cutting from large printed rolls and wide sheets.
Signage & Vehicle Graphics
POS displays, exhibition graphics, vehicle wraps, and short-run finishing — versatile dual head cutting for sign shops and commercial printers.
Business Opportunity
Earning With the D48
What shops sell with the D48, and the help you get from Skycut India after you buy.
What You Can Sell
Box samples, gift packaging, stencils, and vinyl graphics from one machine.
Setup and Training
We help you set up the D48 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the D48.
Card and thin board for boxes, plus vinyl, sticker paper, and HTV. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, and you can send jobs straight from CorelDRAW. Ask us which software comes with your order.

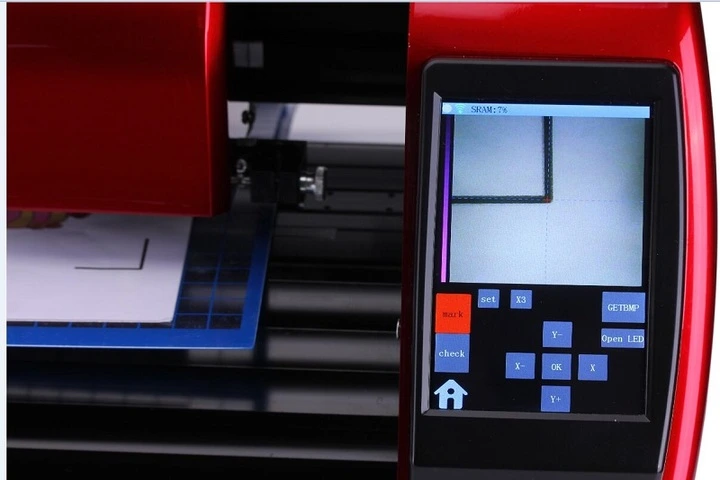

Print your design with registration marks, load the sheet, and the camera reads the marks. The D48 then cuts along each printed outline, so you do not need to line it up by hand.
Cutting width: 560mm. Media width: up to 720mm. Top speed: 700mm/s. See the Specifications tab for the full list.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
