Skycut D24 Double Head Cutting Plotter
Industrial Strength Precision Cutting with Dual-Tool Versatility for cardboard box cutter and custom packaging boxes.
A 24-inch dual-head cutter: one head cuts, the other creases or draws. Makes box samples and packaging with 2000 g of force.

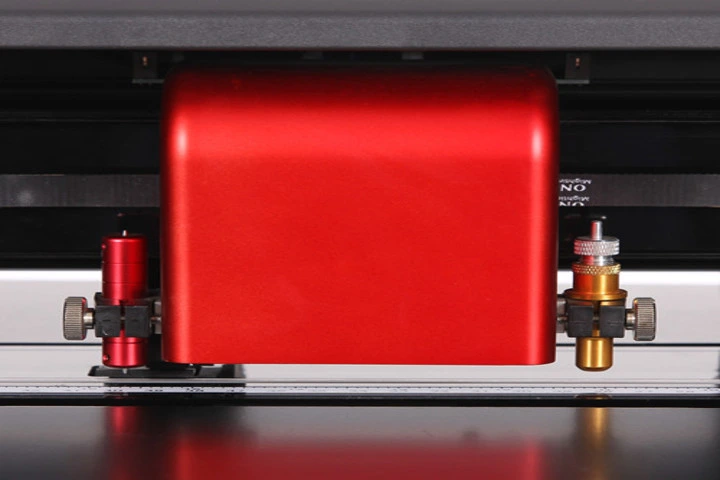

The D24 has two independent heads. One holds the blade and the other can crease or draw, so you can make folding box samples and packaging from a single file. Up to 2000 g of force gets through card and thin board.
It takes media up to 720 mm wide, cuts across 560 mm, and contour-cuts across 450 mm with its camera. It is about 18.5 kg packed, and a floor stand is available as an option. For box work on A3 sheets with automatic feeding, see the A3 MAX 4 PRO.
Max Media Width
720mm
Max Cutting Width
560mm
Max Contour Cutting Width
450mm
Packing Size
1000*360*388mm
Packing Gross Weight
18.5kg
Max Force
2000g
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 720mm |
| Max Cutting Width | 560mm |
| Max Contour Cutting Width | 450mm |
| Packing Size | 1000*360*388mm |
| Packing Gross Weight | 18.5kg |
| Max Force | 2000g |
| Number of Heads | 2 |
| Floor Stand | option |
| Auto Contour Cut | Camera |
| CorelDRAW Directly | Yes |
| Power Supply, V/Hz | 220/50 |
| Laser Engrave Option | No |
| Scratch Engrave | Yes |
| Motor | Stepper |
| Processor Memory | 128MB |
| Cutting Precision | +/- 0.01mm |
| Repeat Precision | 0.082 mm |
| Max Moving Speed | 700mm/s |
The D24 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Watch Skycut D24 Draw with Pen Tool | Sketch + Cut on One Machine
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the D24.
Folding Cartons & Mailer Boxes
Tuck-end boxes, mailers, and product sleeves — crease and cut dielines on this box making machine before full production runs.
Rigid Boxes & Gift Packaging
Cut and score board panels for rigid boxes, gift boxes, and premium packaging samples — ideal for designers and brand studios.
Stickers, Vinyl & Labels
Die-cut stickers, vinyl decals, product labels, and kiss-cut sheets — contour cutting from printed rolls and sheets off your plotter printer.
Signage & Custom Print
POS graphics, invitation cards, hang tags, and short-run finishing — versatile dual head cutting for sign shops and print agencies.
Business Opportunity
Earning With the D24
What shops sell with the D24, and the help you get from Skycut India after you buy.
What You Can Sell
Box samples, gift packaging, stencils, and vinyl graphics from one machine.
Setup and Training
We help you set up the D24 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the D24.
Card and thin board for boxes, plus vinyl, sticker paper, and HTV. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, and you can send jobs straight from CorelDRAW. Ask us which software comes with your order.

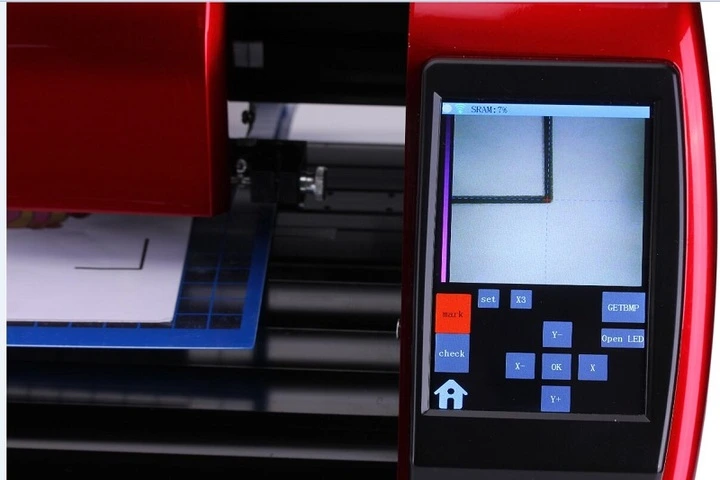

Print your design with registration marks, load the sheet, and the camera reads the marks. The D24 then cuts along each printed outline, so you do not need to line it up by hand.
Cutting width: 560mm. Media width: up to 720mm. Top speed: 700mm/s. See the Specifications tab for the full list.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
