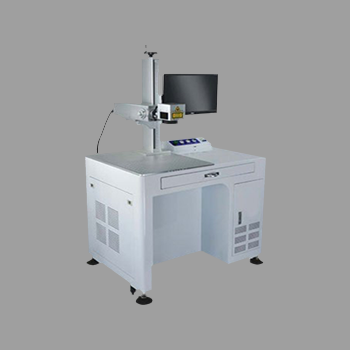

Skycut Laser Marking Machine
All Type Metal Marking, Mobile Charger Marking, Etc And Many More. Laser Type is Fiber.
A 20 W fiber laser marker for metal parts, chargers, tools, and nameplates. Marks a 220 × 220 mm area with air cooling.
This fiber laser marks metal and many plastics permanently. Use it for logos and serial numbers on chargers and accessories, tool markings, and nameplates. The 20 W source works at 1064 nm and marks a 220 × 220 mm area at up to 8000 mm/s.
It is air-cooled, so it needs no water chiller, and it accepts PLT, AI, DXF, BMP, JPG, CDR, and DWG files. To cut wood, acrylic, or leather instead of marking metal, see the CO2 laser cutting machine.
Laser Power
20W
Laser Type
Fiber Laser
Wavelength
1064 nm
Processing Area
220*220 mm
Frequency Range
20-200 khz
Laser Source Lifetime
≤100000 h
Compatible Software
| Specification | Details |
|---|---|
| Laser Power | 20W |
| Laser Type | Fiber Laser |
| Wavelength | 1064 nm |
| Processing Area | 220*220 mm |
| Frequency Range | 20-200 khz |
| Laser Source Lifetime | ≤100000 h |
| Marking Speed | ≤8000 mm/s |
| Marking Depth | ≤2 mm |
| Repitition Pricision | ±0.01 mm |
| Min. Line Width | 0.01 mm |
| Cooling Mode | Air Cooling |
| Lifting Height | 100*500 mm ( 700 mm ) |
| Graphic Format Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
| Power Source | AC 110/220 ± 10%, 50/60Hz |
The Laser Marker works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut Laser Marking
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the Laser Marker.
Business Opportunity
Earning With the Laser Marker
What shops sell with the Laser Marker, and the help you get from Skycut India after you buy.
What You Can Sell
Permanent logos and serial numbers on chargers, tools, and parts, plus metal nameplates and gifts.
Setup and Training
We help you set up the Laser Marker and show you how to run your first jobs.
Know Your Costs
Material and consumables are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the Laser Marker.
It marks metals and many plastics. It is a marking machine, so it does not cut through material.
It accepts common design files: PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG. Our team helps you set up the software when you buy.
Working area: 220*220 mm. Top speed: ≤8000 mm/s. See the Specifications tab for the full list.
It is a production machine, so expect a short learning period. We help with setup and train you on your own jobs.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
