New
SKYCUT® Official
VH-60 Servo Motor
Professional Cutting Plotter for Radium, Retro-Reflective, and Heavy-Duty Vinyl Applications.
Our widest servo vinyl cutter. Takes 1650 mm media, cuts 1540 mm wide, and reaches 1200 mm/s with 2000 g of force.

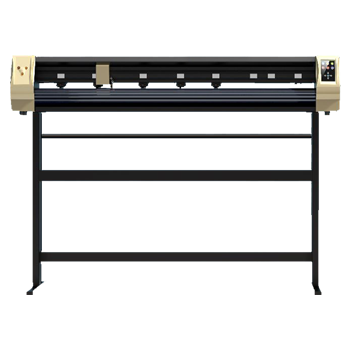

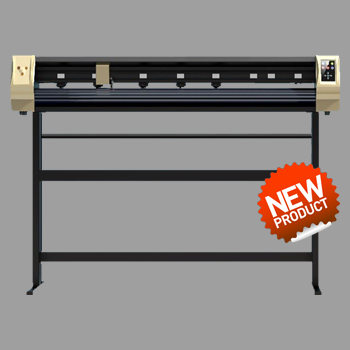

The VH-60 is the widest cutter in the VH range. It takes media up to 1650 mm wide and cuts across 1540 mm, which covers oversized signs, fleet graphics, and full-width rolls of reflective film.
The servo motor reaches 1200 mm/s and the head applies up to 2000 g. It connects over U-disk and USB cable, with Wi-Fi as an option, and it is about 50 kg packed. If your jobs rarely go above 1.2 m, the VH-48 is a smaller machine.
Max Media Width
1650mm
Max Cutting Width
1540mm
Motor
Servo
Cutting Precision
0.01mm
Repeat Precision
0.082mm
Max Cutting Speed
1200mm/s
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 1650mm |
| Max Cutting Width | 1540mm |
| Motor | Servo |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Cutting Speed | 1200mm/s |
| Max force | 2000g |
| Connector Interface | U-disk/WIFI(Optional)/USB Cable |
| Power | < 100W |
| Working environment | +5°C - +35°C |
| Packing Size | 730*330*330mm |
| Packing Gross Weight | appx 50kg |
The VH-60 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
SKYCUT VH Series Demo | Precision UV DTF Sticker Cutting
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the VH-60.
Oversized Signage & Fleet Graphics
Shop fascias, wall wraps, fleet branding, and exhibition displays — this extra-wide vinyl cutter and vinyl plotter handles the largest advertising jobs.
Vinyl Sticker & Sticker Cutting Plotter Work
Premium vinyl sticker jobs, logo decals, and packaging stickers on this sticker cutting machine and Sticker Cutting Plotter with clean edges.
Radium Sticker Cutting & Retro Cutting
Car and bike radium stickers, road signs, and reflective graphics — a proven radium cutting machine for radium cutting and retro cutting films.
Heat Transfer Vinyl & Print Shops
A complete cutting machine and digital cutting machine — one vinyl machine for signage, heat transfer vinyl, radium, retro, and Sticker Plotter Machine work.
Business Opportunity
Earning With the VH-60
What shops sell with the VH-60, and the help you get from Skycut India after you buy.
What You Can Sell
Shop signs, vehicle stickers, HTV for T-shirts, wall decals, and printed stickers cut on their outline.
Setup and Training
We help you set up the VH-60 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the VH-60.
Self-adhesive vinyl, heat transfer vinyl, sticker paper, and cardstock, plus radium and retro-reflective film. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
The published precision is 0.01mm.
Cutting width: 1540mm. Media width: up to 1650mm. Top speed: 1200mm/s. See the Specifications tab for the full list.
It connects over U-disk, Wi-Fi(Optional), USB Cable.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
