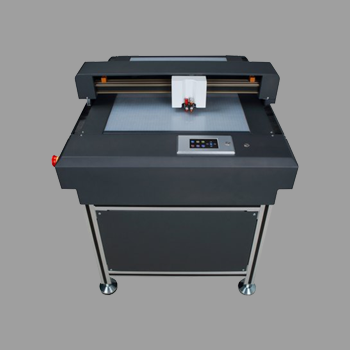

Skycut Flatbed 4560 Cutting Plotter
Larger touch screen than any other series product which gives you an edge in using the machine for box making and custom packaging.
A heavy-duty dual-head vacuum flatbed with a 450 × 600 mm table and 2000 g of force, for boxes, packaging, and rigid sheets.

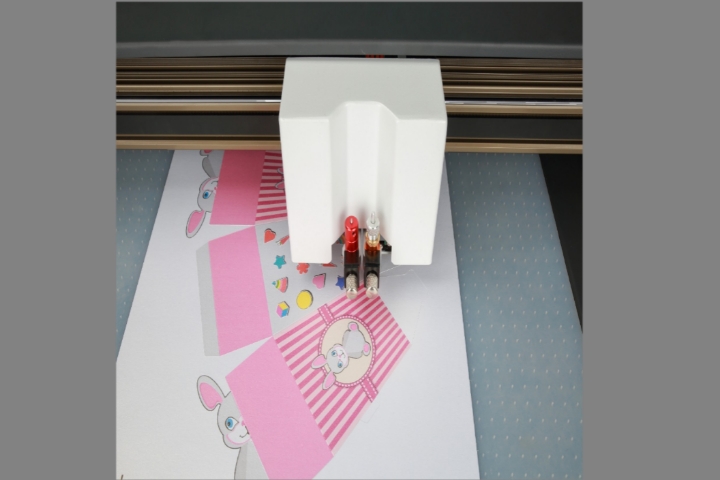

The F4560 holds sheets down on a vacuum table, so it cuts card, board, and rigid materials that a roll cutter cannot grip. Two heads let it cut and crease boxes in one pass, with up to 2000 g of force.

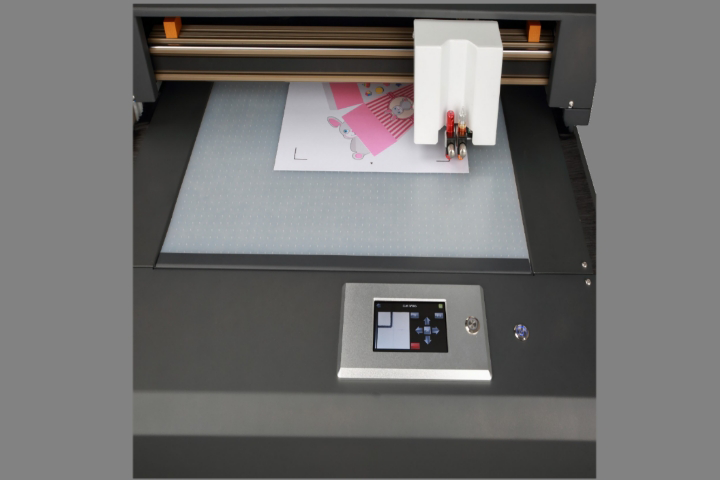

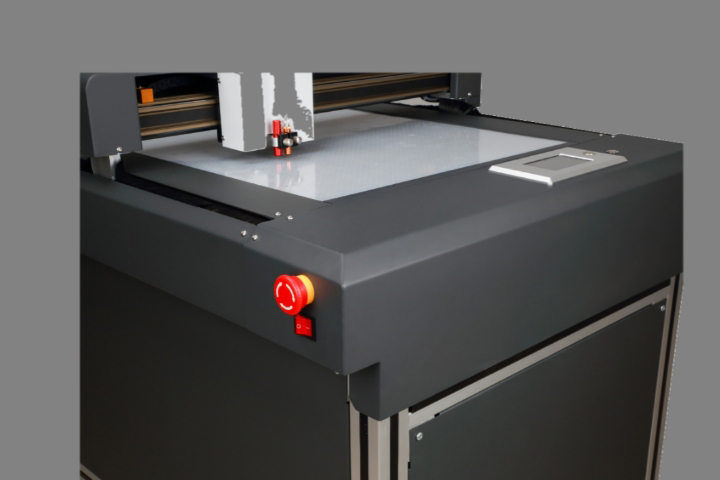

The table takes sheets up to 450 × 600 mm. It has a touch screen and an emergency stop button, and it connects over U-disk and USB cable, with Wi-Fi as an option. It is about 180 kg packed. For automatic feeding and a bigger table, see the FR6090 flatbed.
Acceptable Media Size
450*600mm
Max Cutting Size
450*600mm
Work Mode
Vacuum Adsorbing
Control Panel
Touch Screen
Heads
Double Heads
Cutting Precision
0.01mm
Compatible Software
| Specification | Details |
|---|---|
| Acceptable Media Size | 450*600mm |
| Max Cutting Size | 450*600mm |
| Work Mode | Vacuum Adsorbing |
| Control Panel | Touch Screen |
| Heads | Double Heads |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.05 mm |
| Max. Moving Speed | 700mm/s |
| Max. Cutting Speed | 600mm/s |
| Max. Force | 2000g |
| Connector Interface | U-disk/WIFI(Optional)/USB Cable |
| Working Environment | +5°C - +35°C |
| Packing Size | 1050*900*1020mm |
| Packing Gross Weight | 180KG |
The F4560 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut F4560 Flatbed Cutting Plotter for professional-grade cutting of all materials. ORDER TODAY!!!
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the F4560.
Rigid Boxes & Luxury Packaging
Cut and crease board panels for rigid boxes, gift boxes, and premium packaging samples — a reliable box making machine for designers presenting to clients.
Folding Cartons & Mailer Boxes
Tuck-end cartons, mailers, and product sleeves — crease and cut dielines on this box making plotter before you commit to a full production run.
Stickers, Decals & Labels
Kiss-cut stickers, die-cut decals, product labels, and barcode tags — fast sticker cutting machine output from sheets off your plotter printer.
Signs, Cards & Print Finishing
POS displays, invitation cards, hang tags, and short-run print finishing — versatile flatbed cutting plotter work for agencies and commercial print shops.
Business Opportunity
Earning With the F4560
What shops sell with the F4560, and the help you get from Skycut India after you buy.
What You Can Sell
Box samples, short-run packaging, display parts, and flat stickers cut from full sheets.
Setup and Training
We help you set up the F4560 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the F4560.
Cardstock, board, self-adhesive paper, and plastic sheet, held flat on the table. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
The published precision is 0.01mm.
Working area: 450*600mm. Top speed: 600mm/s. See the Specifications tab for the full list.
It connects over U-disk, Wi-Fi(Optional), USB Cable.
It is a production machine, so expect a short learning period. We help with setup and train you on your own jobs.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
