Skycut FR6090 Flatbed
Professional flatbed cutting plotter with advanced precision, large working area, and intuitive touch screen interface.
A dual-head vacuum-table flatbed with automatic feeding and camera recognition. Cuts board, PVC, PET, and cardstock up to 600 × 900 mm.

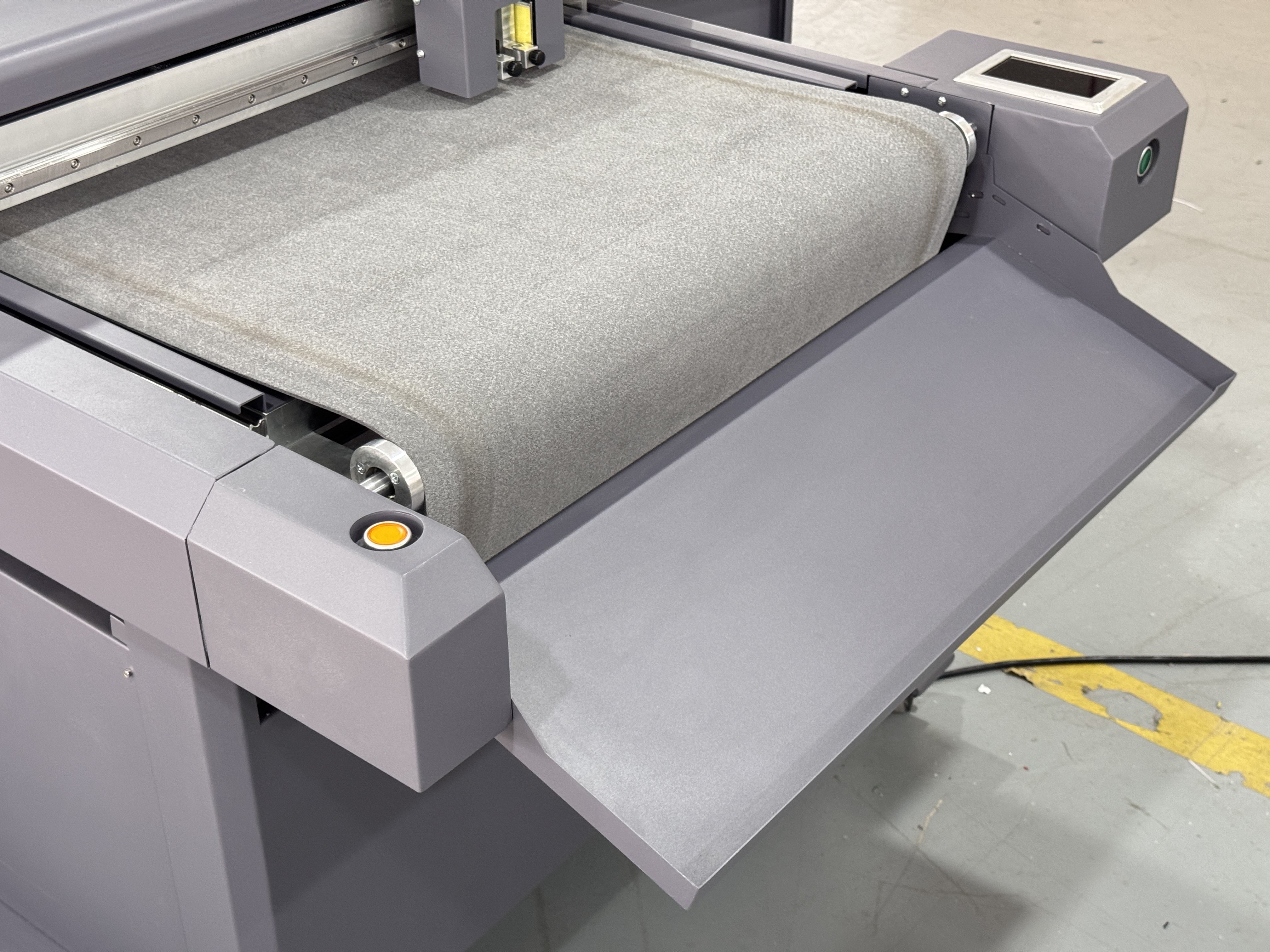

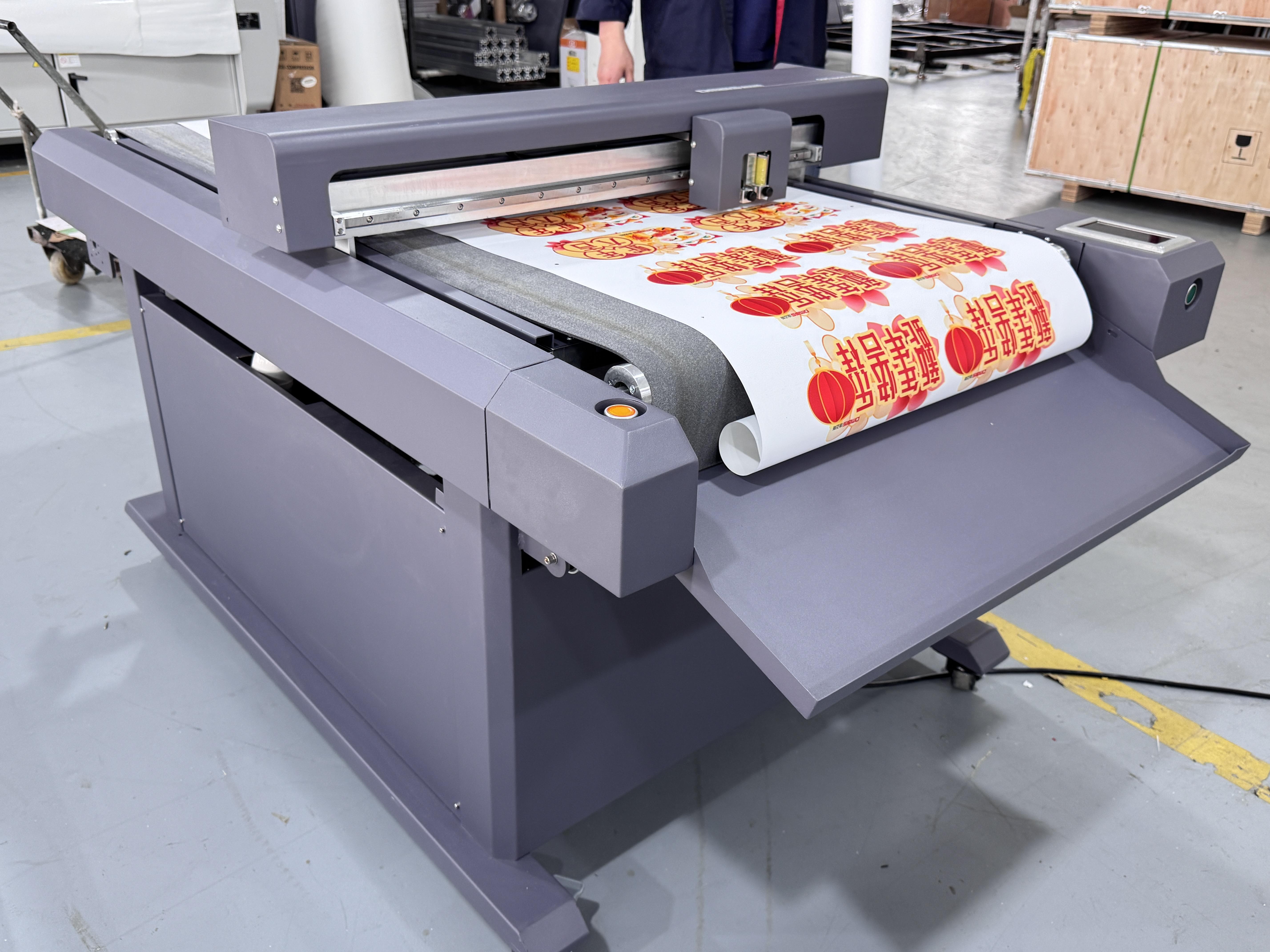

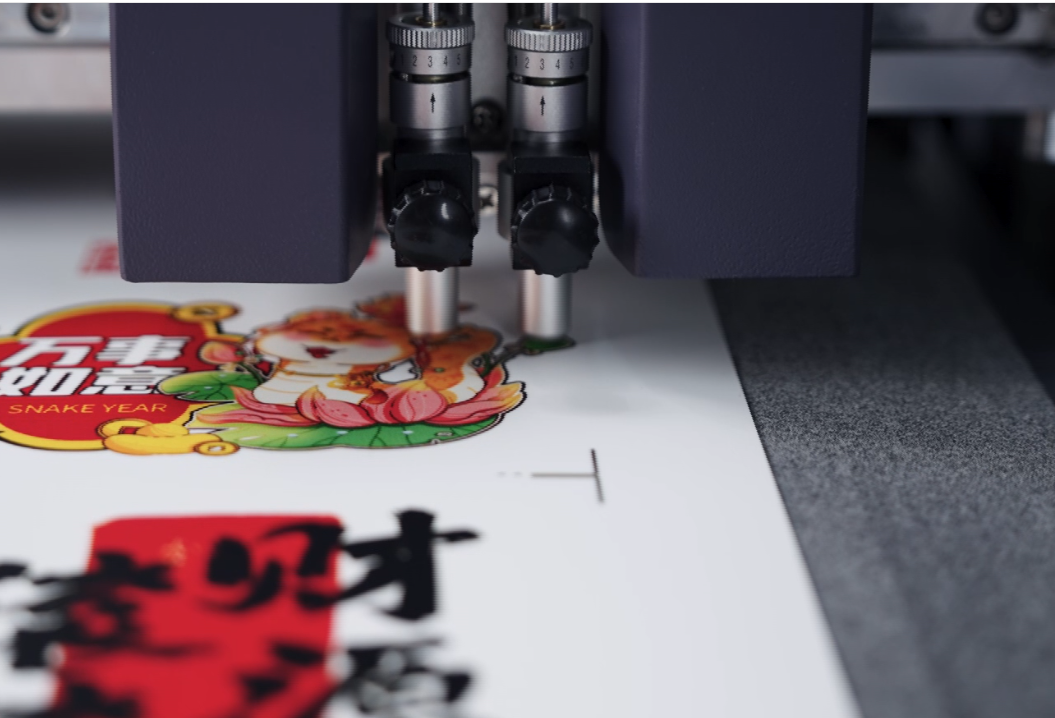

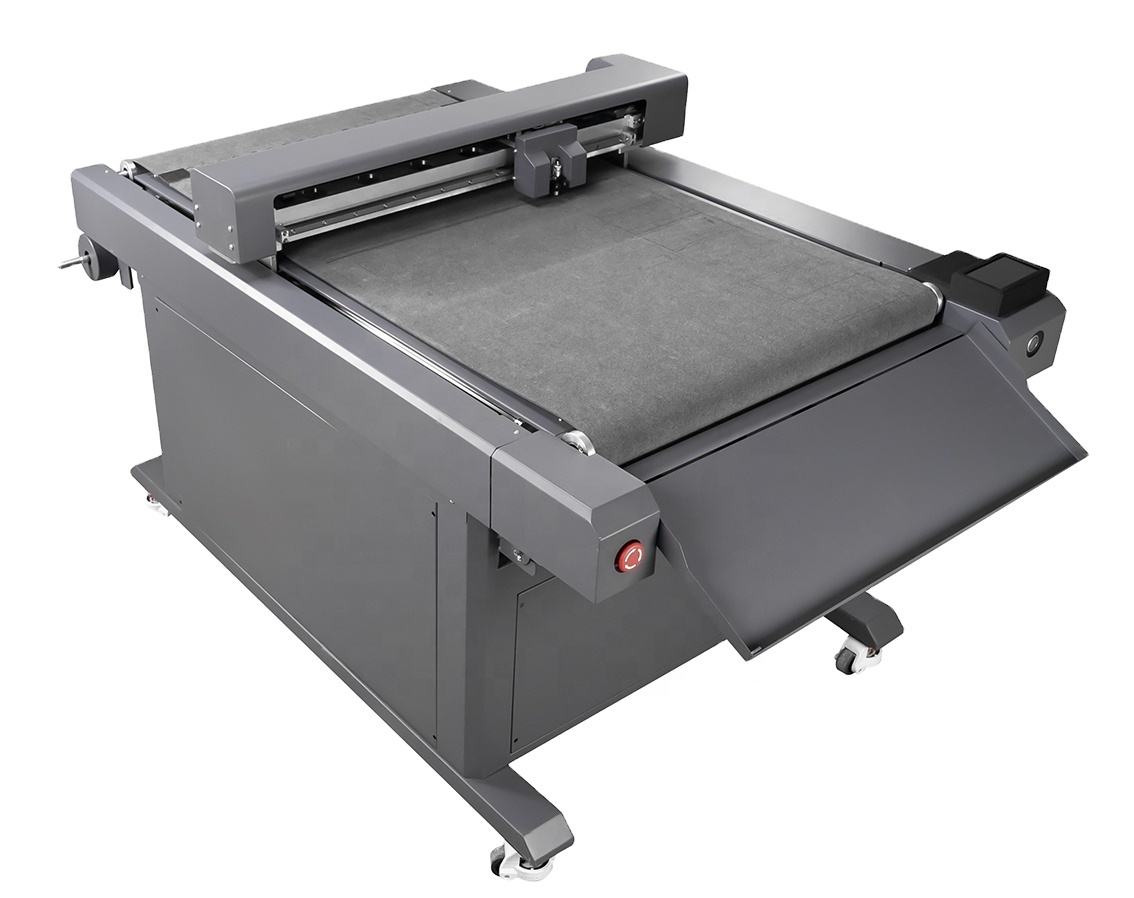

The FR6090 holds material flat on a vacuum table, so it can cut rigid sheets that a roll plotter cannot grip. Two tool heads let it cut and crease in one pass, with up to 2000 g of pressure. Automatic feeding and QR-code recognition mean you can load a batch and let it run.
It takes material up to 600 × 900 mm and cuts at up to 800 mm/s. It connects over Wi-Fi, USB, or LAN. This is a 200 kg floor machine with a 1500 W vacuum fan, so plan the space and power supply before you order. For a smaller table, see the Skycut F4560 flatbed cutter.
Brand Name
SKYCUT
Model
SKYCUT FR6090 Flatbed Plotter
Motor
DC Stepper Motor
Control Panel
5-Inch Touch Screen
Number of Tool
DUAL HEAD
Working Area Size
630 × 1200 mm
Compatible Software
| Specification | Details |
|---|---|
| Brand Name | SKYCUT |
| Model | SKYCUT FR6090 Flatbed Plotter |
| Motor | DC Stepper Motor |
| Control Panel | 5-Inch Touch Screen |
| Number of Tool | DUAL HEAD |
| Working Area Size | 630 × 1200 mm |
| Maximum Material Placement Size | 600 × 900 mm |
| Maximum Cutting Speed | 800 mm/s |
| Maximum Cutting Pressure | 2000 g |
| Repeatability Accuracy | ±0.01 mm |
| Cutting Accuracy | 0.025 mm |
| Connection | Wi-Fi / USB / LAN Cable |
| Camera | Supported |
| Automatic Feeding | Supported |
| QR Code Recognition | L Corner, Dot |
| Applicable Cutting Materials | Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET |
| Input Power | 100–240V AC, 50/60Hz |
| Power Consumption | Main Unit: 150W / Fan: 1500W |
| Operating Temperature | 5°C – 35°C |
| Overall Machine Size | 1770 × 1000 × 980 mm |
| Overall Machine Weight | 200 kg |
The FR6090 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut FR6090. Flatbed cutter with smart table
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the FR6090.
Packaging & Box Making
Folding carton prototypes, product box samples, retail packaging, and gift box mock-ups — a trusted box making plotter for packaging manufacturers and design studios.
Labels, Stickers & Print Finishing
Die-cut stickers, packaging labels, sheet cutting, and kiss-cut finishing — solid sticker cutting machine and label cutting performance for print shops.
Signage & Display Graphics
POP displays, exhibition graphics, promotional materials, and branding panels — versatile flatbed cutting machine work for advertising agencies and sign companies.
Cards, Magnets & Crafts
Invitation cards, greeting cards, refrigerator magnets, magnetic sheets, and custom paper crafts — precise cutting for craft businesses and custom producers.
Business Opportunity
Earning With the FR6090
What shops sell with the FR6090, and the help you get from Skycut India after you buy.
What You Can Sell
Box samples, short-run packaging, display parts, and flat stickers cut from full sheets.
Setup and Training
We help you set up the FR6090 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the FR6090.
Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET, held flat on the table. Maximum cutting force is 2000 g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
Print your design with registration marks, load the sheet, and the camera reads the marks. The FR6090 then cuts along each printed outline, so you do not need to line it up by hand.
Working area: 630 × 1200 mm. Largest material: 600 × 900 mm. Top speed: 800 mm/s. See the Specifications tab for the full list.
It connects over Wi-Fi, USB, LAN Cable.
It is a production machine, so expect a short learning period. We help with setup and train you on your own jobs.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
