New
SKYCUT® Official

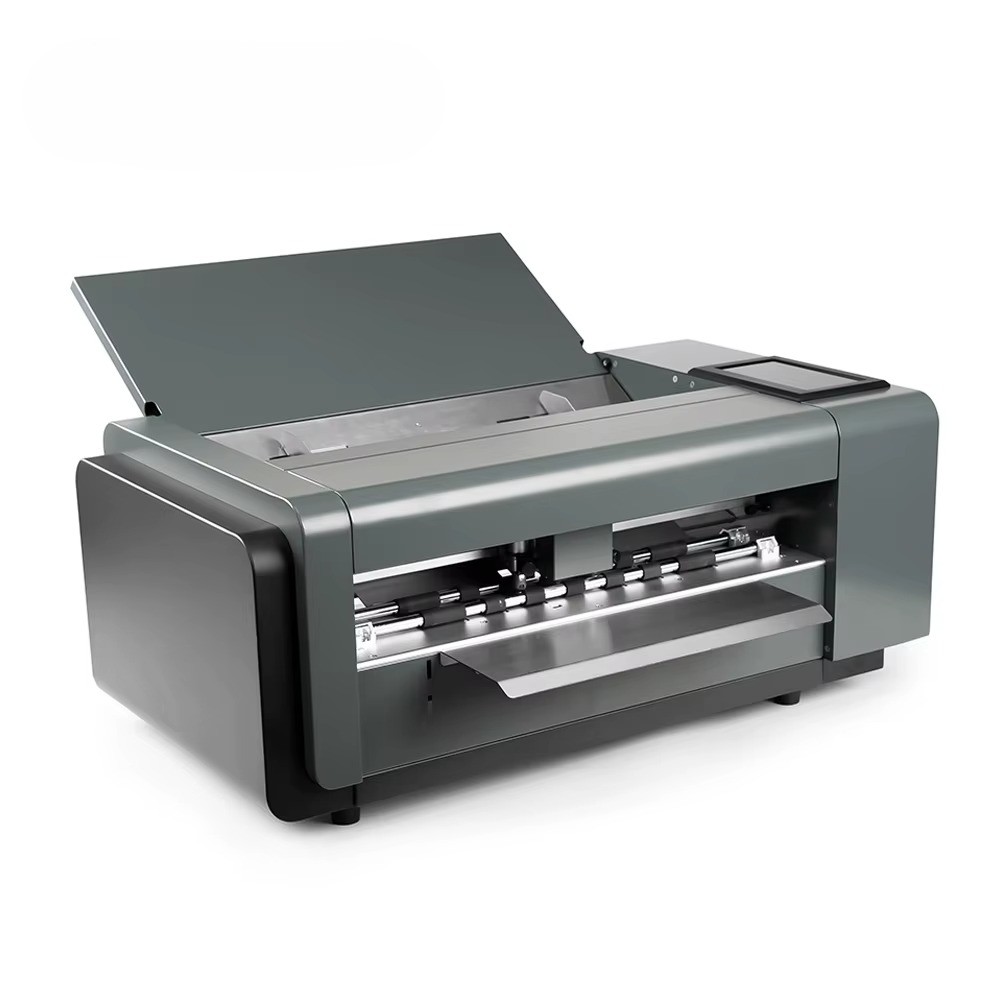

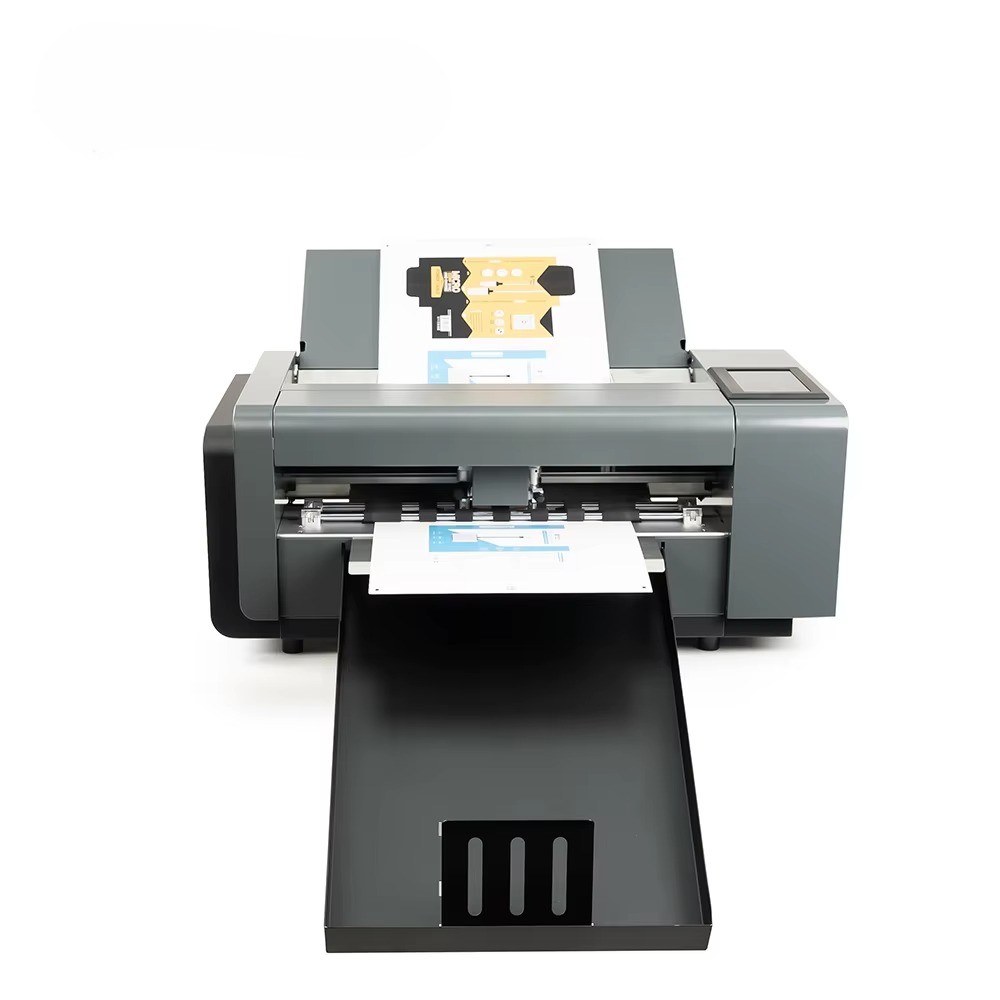

SKYCUT A3 MAX 7-Pro Cutting & Creasing Plotter
Cut and crease carton samples on one machine. The tool heads adjust on their own.
Our fastest dual-head sheet plotter: one head cuts, the other creases. Make carton samples, mailers, and sleeves on A3 sheets at up to 1800 mm/s.

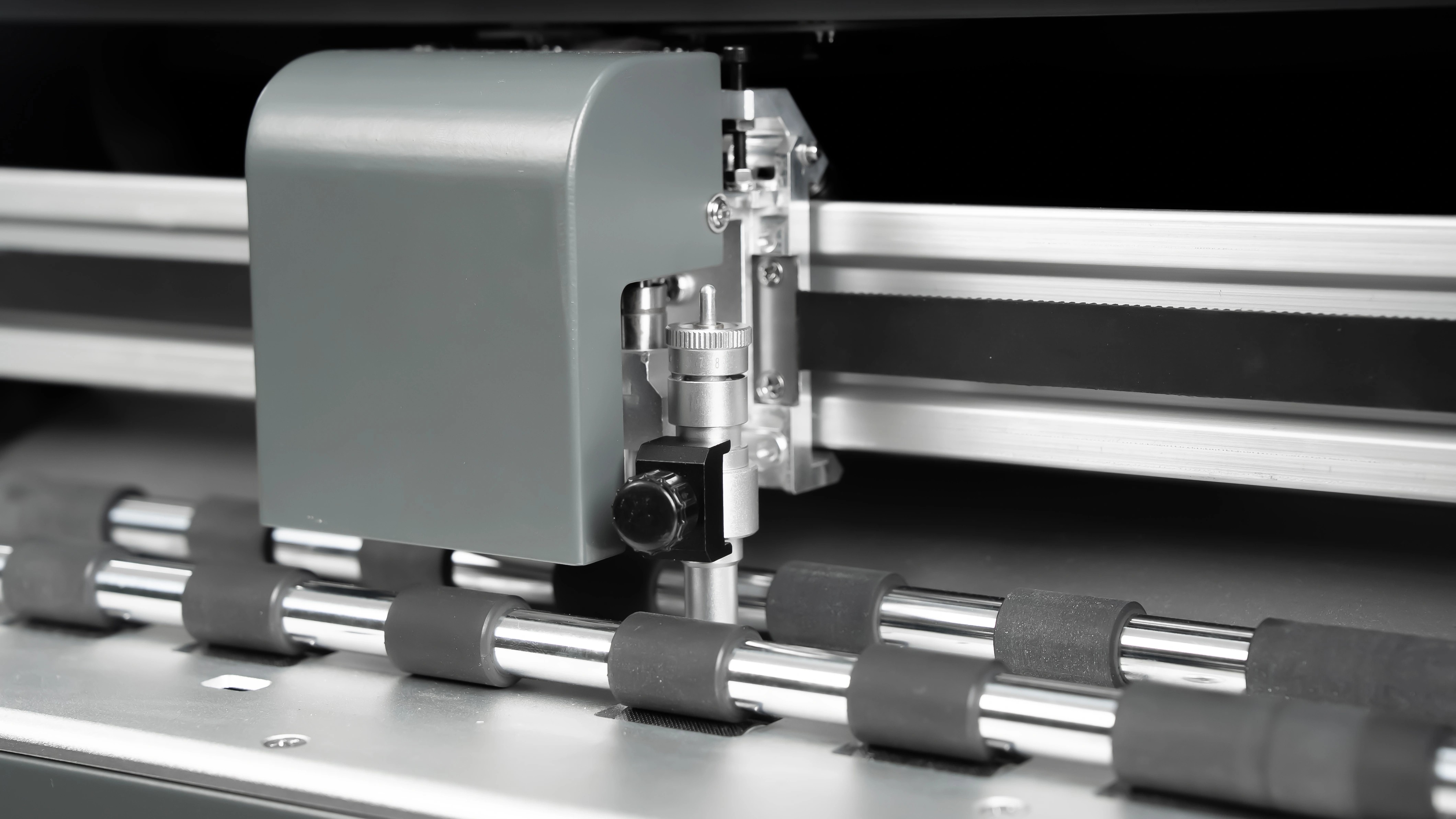

The A3 MAX 7-Pro is built for packaging work. The left head carries up to 2000 g for cutting board and the right head carries 1000 g for the creasing wheel, so a folding carton comes off the bed already scored and ready to fold. Blade depth adjusts on its own, which saves test cuts when you switch between paper, cardstock, and thin board.
A digital drive motor moves the carriage at up to 1800 mm/s, and the camera reads printed marks for contour cuts. You can send jobs over Wi-Fi, USB, or Ethernet. If you only cut stickers and labels and never crease, the single-head A3 MAX 7 sheet plotter gives you the same speed for less.
Model
A3 MAX 7-Pro
Maximum Material Width
370mm
Maximum Cutting Width
350mm
Positioning Method
Vision Camera (Auto Contour Following)
Control Method
Touch Screen
Motor
Digital Drive Motor System
Compatible Software
| Specification | Details |
|---|---|
| Model | A3 MAX 7-Pro |
| Maximum Material Width | 370mm |
| Maximum Cutting Width | 350mm |
| Positioning Method | Vision Camera (Auto Contour Following) |
| Control Method | Touch Screen |
| Motor | Digital Drive Motor System |
| Maximum Blade Pressure | L:2000g R:1000g |
| Number of Tool Heads | 2 |
| Cutting Accuracy | +/-0.01mm |
| Repeatability / Repeat Accuracy | 0.082mm |
| Power | 135W |
| Maximum Cutting Speed | 1800mm/s |
| Machine Dimensions | 798 × 455 × 332mm |
| Automatic Blade Adjustment | Supported |
| Connection Method | Wi-Fi, USB, Ethernet Port |
| Operating Ambient Temperature | +5°C~+35°C |
The A3 MAX 7-Pro works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
This model does not have a video on the Skycut India channel yet.
Applications
What You Can Create
Typical jobs our customers run on the A3 MAX 7-Pro.
Carton Sampling & Dielines
Folding carton prototypes and packaging samples — cut and wheel-crease fold lines without switching machines on this box making plotter.
Mailers & Product Sleeves
Mailer boxes, tuck-end cartons, and product sleeves — dual-head cut and crease for fast packaging proofs.
Labels & Stickers
Product labels and vinyl stickers with vision contour — a precise label cutting machine and sheet cutting machine in the same footprint.
Perforated Sheet Finishing
Perforation bonding points keep parts in place until peel — cleaner stacks for auto feeder and automatic feeding style production flow.
Business Opportunity
Earning With the A3 MAX 7-Pro
What shops sell with the A3 MAX 7-Pro, and the help you get from Skycut India after you buy.
What You Can Sell
Product labels, sticker sheets, tags, and cards finished in batches for brands and print customers.
Setup and Training
We help you set up the A3 MAX 7-Pro and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the A3 MAX 7-Pro.
Sticker paper, label stock, cardstock, and laminated paper, plus thin board for packaging samples. Maximum cutting force is L:2000g R:1000g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
Print your design with registration marks, load the sheet, and the camera reads the marks. The A3 MAX 7-Pro then cuts along each printed outline, so you do not need to line it up by hand.
Cutting width: 350mm. Media width: up to 370mm. Top speed: 1800mm/s. See the Specifications tab for the full list.
It connects over Wi-Fi, USB, Ethernet Port.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
