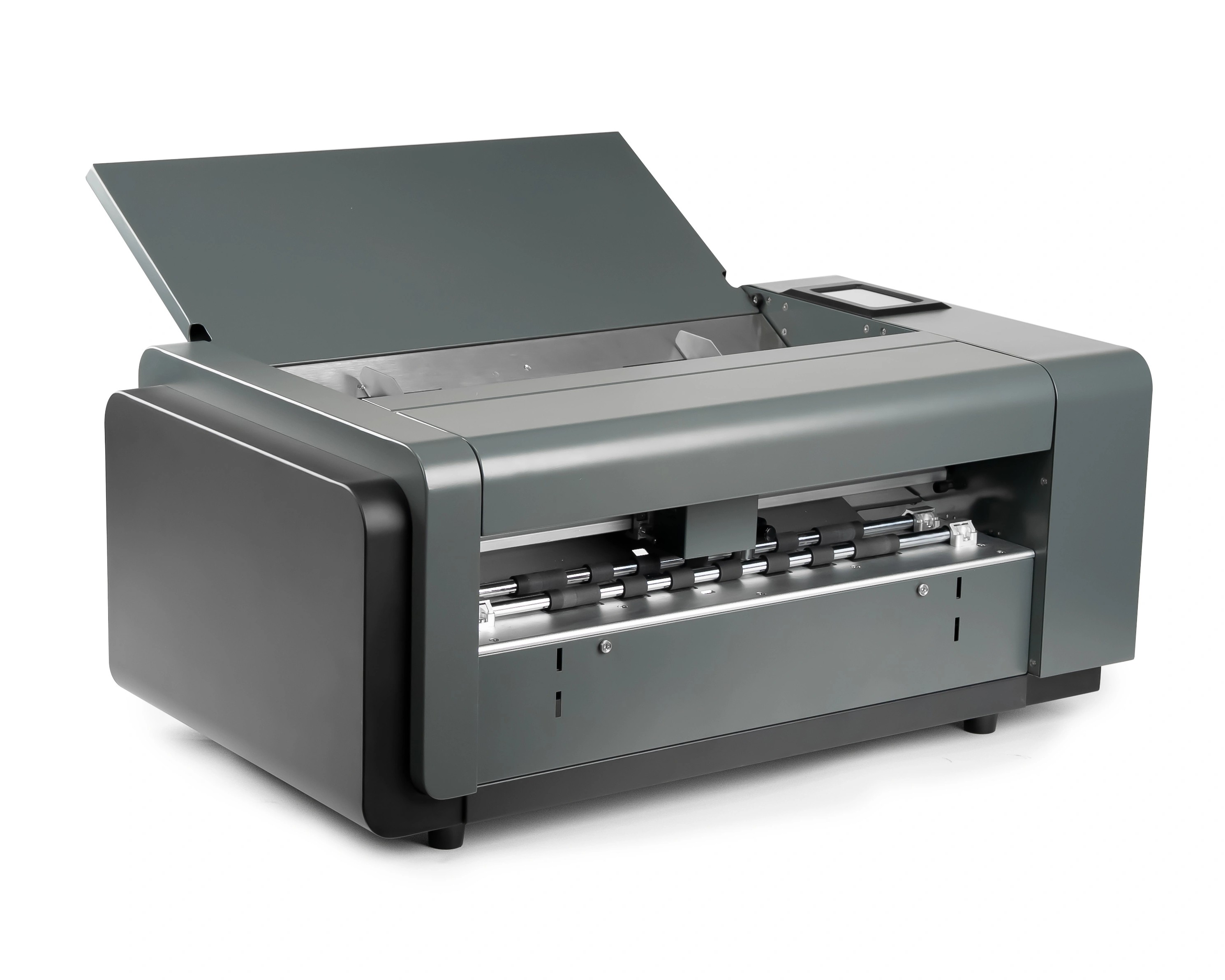

SKYCUT A3 MAX 7 Cutting Plotter
A fast digital drive cutter that helps you finish jobs sooner.
Skycut A3 MAX 7 cutting plotter with a digital drive motor. Cuts up to 1800mm/s, 1000g pressure, camera contour cut, perforation cutting, Wi-Fi, USB and Ethernet.
Skycut A3 MAX 7 cutting plotter with a digital drive motor. Cuts up to 1800mm/s, 1000g pressure, camera contour cut, perforation cutting, Wi-Fi, USB and Ethernet.
Model
A3 MAX 7
Maximum Material Width
370mm
Maximum Cutting Width
360mm
Positioning Method
Vision Camera (Auto Contour Following)
Control Method
Touch Screen
Motor
Digital Drive Motor System
Compatible Software
| Specification | Details |
|---|---|
| Model | A3 MAX 7 |
| Maximum Material Width | 370mm |
| Maximum Cutting Width | 360mm |
| Positioning Method | Vision Camera (Auto Contour Following) |
| Control Method | Touch Screen |
| Motor | Digital Drive Motor System |
| Maximum Blade Pressure | 1000g |
| Number of Tool Heads | 1 |
| Cutting Accuracy | +/-0.01mm |
| Repeatability / Repeat Accuracy | 0.082mm |
| Power | 120W |
| Maximum Cutting Speed | 1800mm/s |
| Machine Dimensions | 768 × 455 × 332mm |
| Automatic Blade Adjustment | Not Supported |

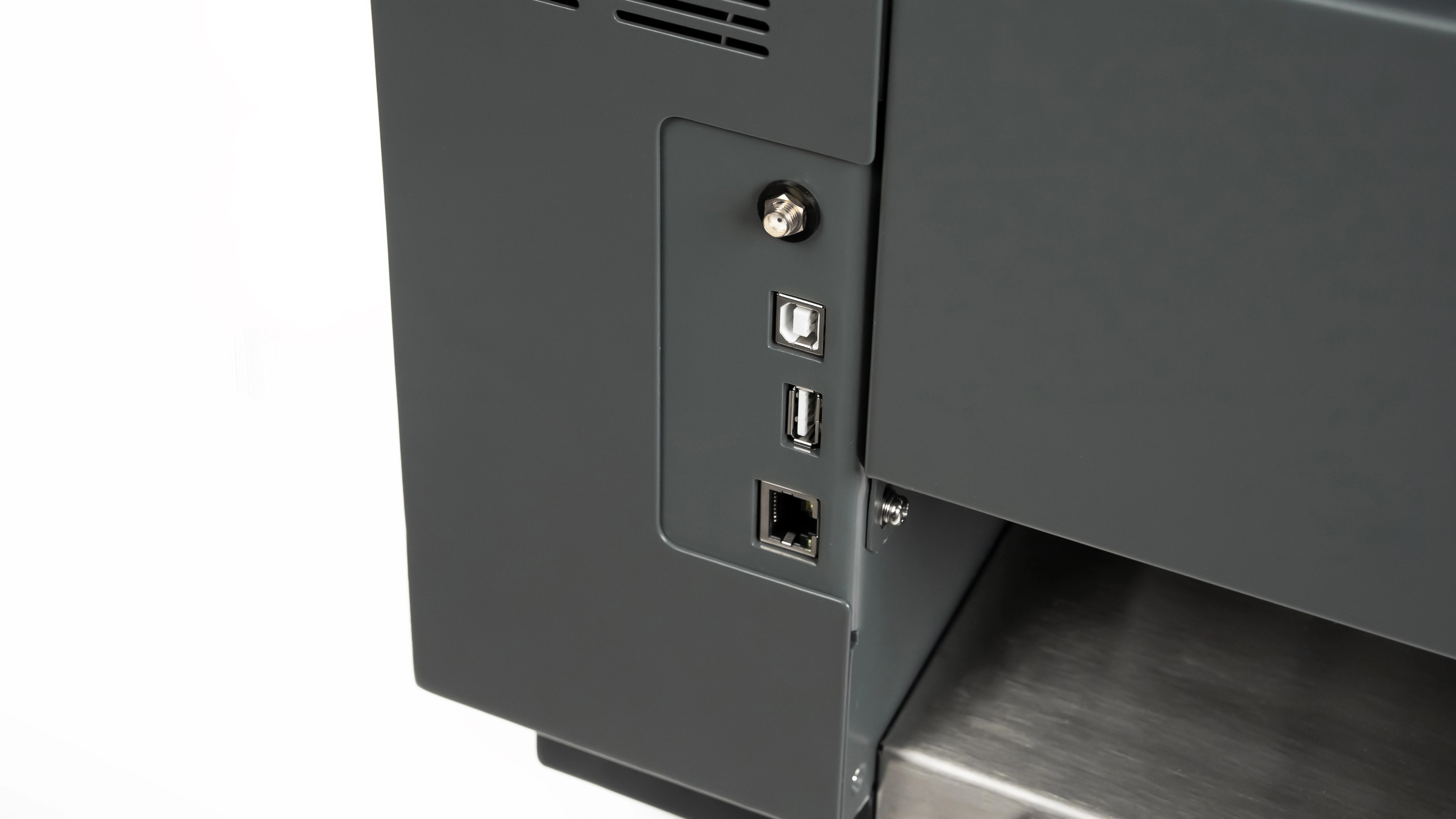

| Connection Method | Wi-Fi, USB, Ethernet Port |
| Operating Ambient Temperature | +5°C~+35°C |
The A3 MAX 7 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
This model does not have a video on the Skycut India channel yet.
Applications
What You Can Create
Explore the endless possibilities with the A3 MAX 7.
Stickers & Decals
Kiss-cut and through-cut stickers at up to 1800 mm/s — a fast die cutting machine alternative for short and mid sticker runs.
Product & Shipping Labels
Product labels, barcode tags, and shipping labels — steady label cutting machine output with vision contour accuracy.
Cardstock & Paper Sheets
Paper and cardstock finishing on a compact sheet cutting machine / industrial paper cutting machine footprint (768 × 455 × 332 mm).
Perforated Parts & Kiss-Cut Sheets
Perforation bonding points keep parts in place until peel — cleaner auto feeding-style sheet handling on finished stacks.
Business Opportunity
Start Your Cutting Business
The A3 MAX 7 is your gateway to a profitable cutting and signage business.
Start Instantly
Set up your signage business in hours with the A3 MAX 7. Professional software included.
High Margins
Signage and decals have 300-800% margins. Low material costs with premium selling prices.
Multiple Revenue Streams
Vehicle wraps, shop signs, window graphics, wall decals — diversify your income sources.
Expanding Market
Every business needs signage. From startups to corporates, the demand for custom graphics is endless.
Support
Frequently Asked Questions
Everything you need to know about the A3 MAX 7.
The A3 MAX 7 cuts vinyl, carbon fiber film, leather texture vinyl, matte/glossy films, color-changing films, and various adhesive-backed materials. It supports 1000g for different material thicknesses.
Inbuilt software is included with the KARA-007 and CA-310 only. The A3 MAX 7 works with SignMaster, CorelDRAW, Adobe Illustrator, and common design files such as AI, SVG, and PDF.
The built-in camera scans registration marks on the printed material, then the software automatically aligns and cuts precisely along the design contours. This enables perfect print-and-cut workflow without manual alignment.
The A3 MAX 7 offers cutting speeds of 1800mm/s with a cutting area of 370mm.
The A3 MAX 7 connects via Wi-Fi, USB, Ethernet Port, ensuring seamless integration with your existing workflow. It's compatible with popular design software including SignMaster, CorelDRAW, and Adobe Illustrator.
Absolutely! The A3 MAX 7 is designed for ease of use. Training is included, and the machine works with SignMaster, CorelDRAW, and Adobe Illustrator. You can start producing professional output from Day 1.
