New
SKYCUT® Official

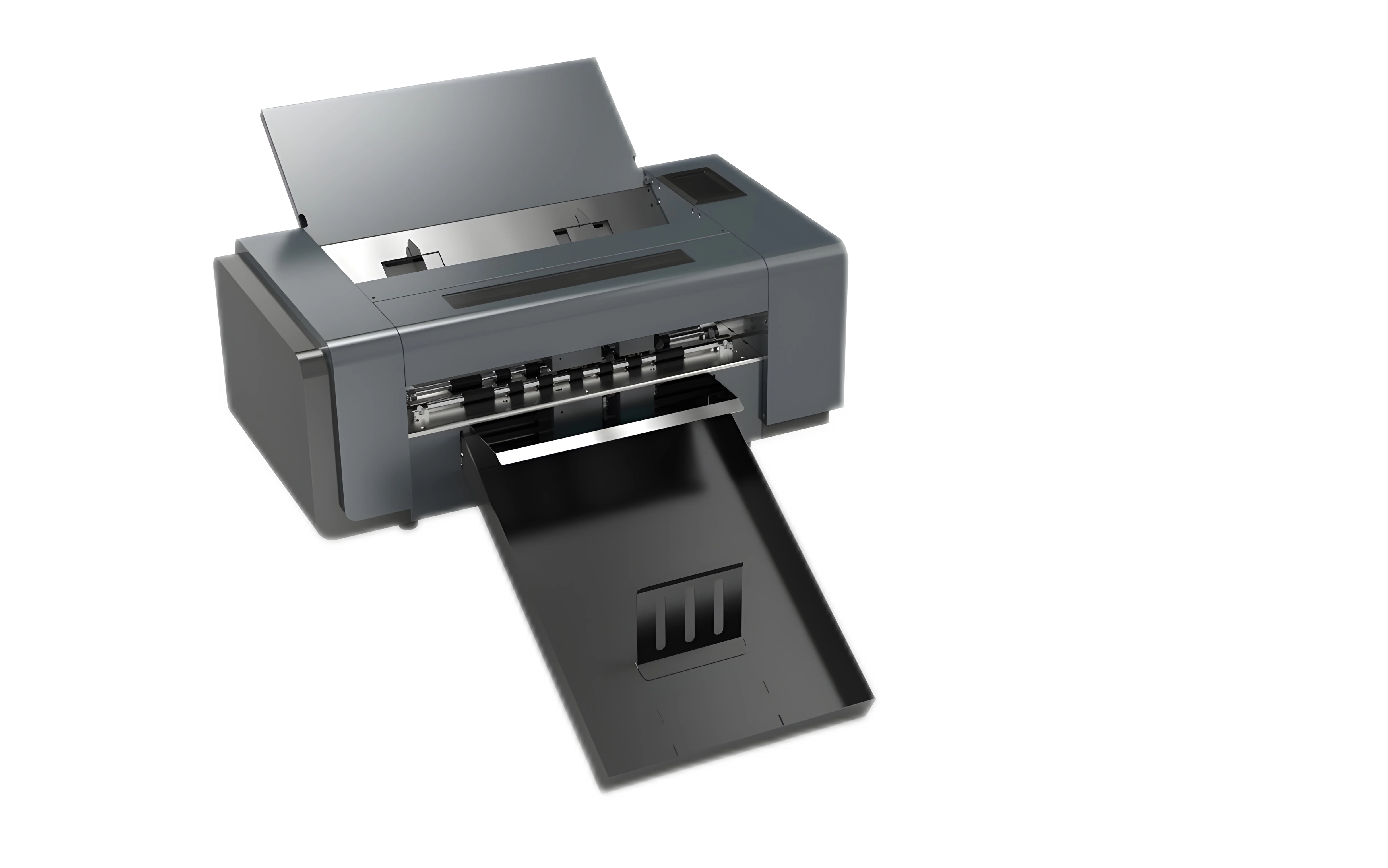

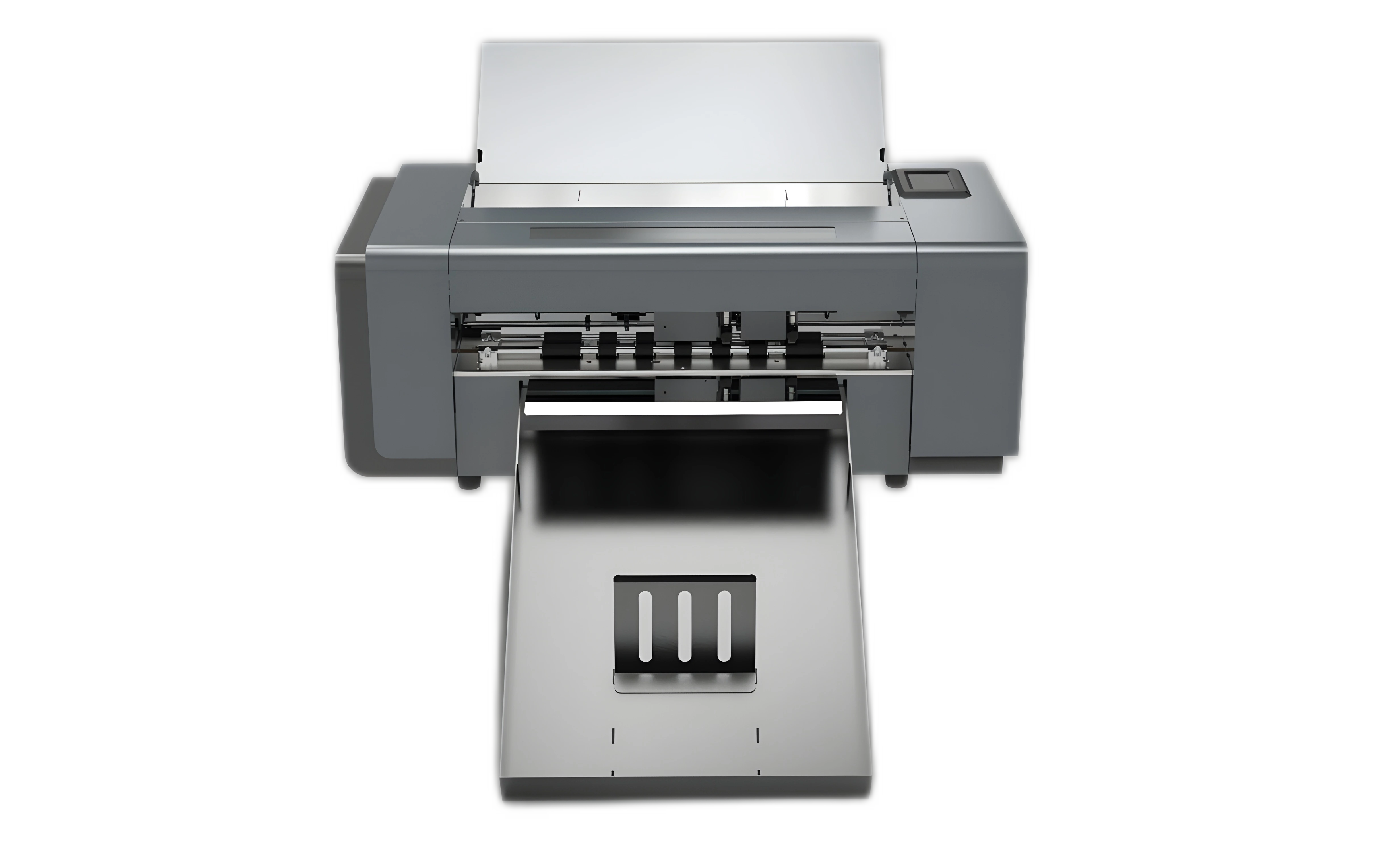

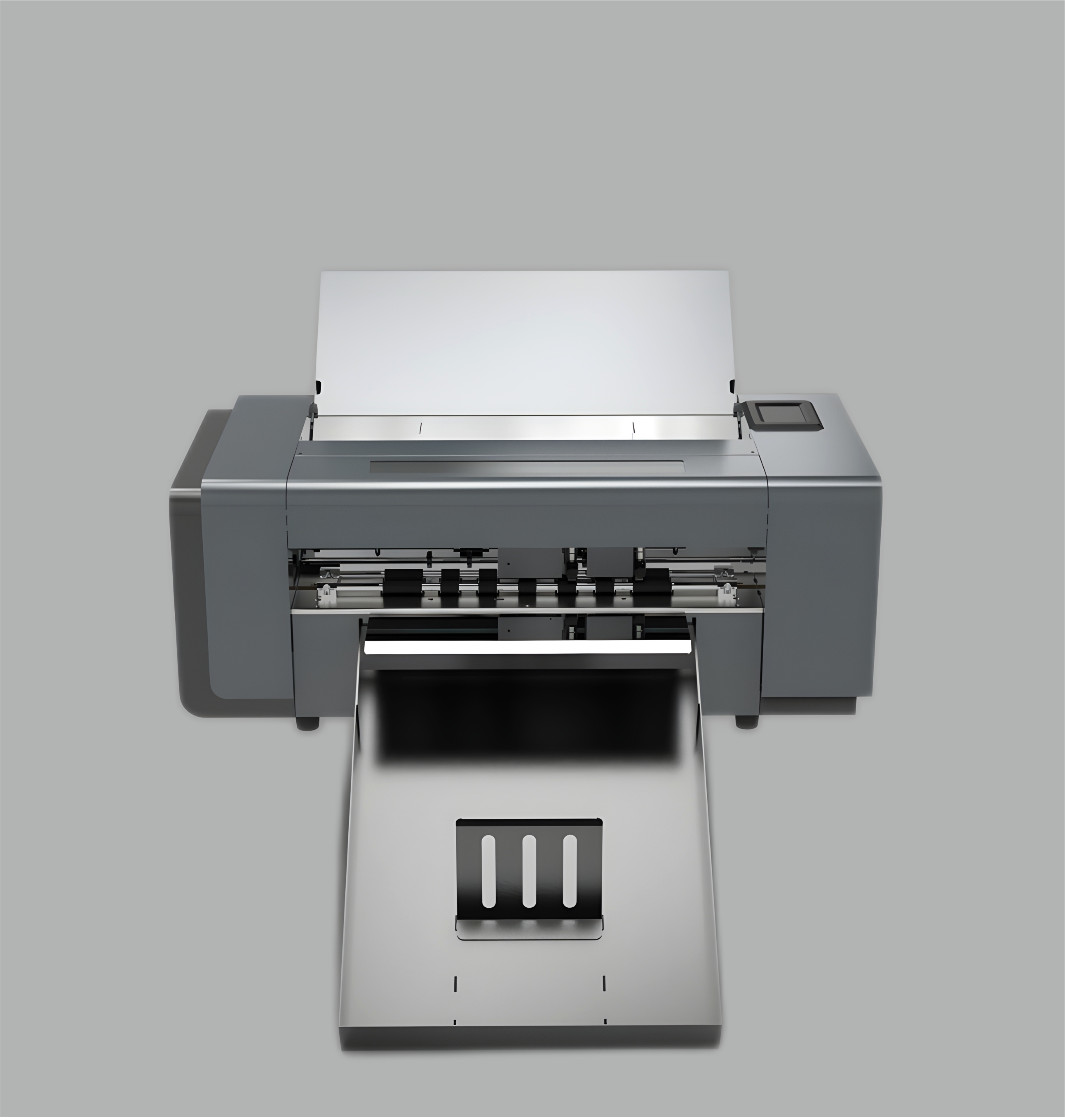

A3 Max 6 DUAL CARRIAGE WITH DUAL HEADS
AUTOMATIC CONTINUOUS FEED / SMALL WORKSTATION / HIGH CONFIGURATION SERVO
An A3 auto feeder with two carriages, each with its own head. Feeds up to 180 sheets and cuts at 1600 mm/s with a servo motor.

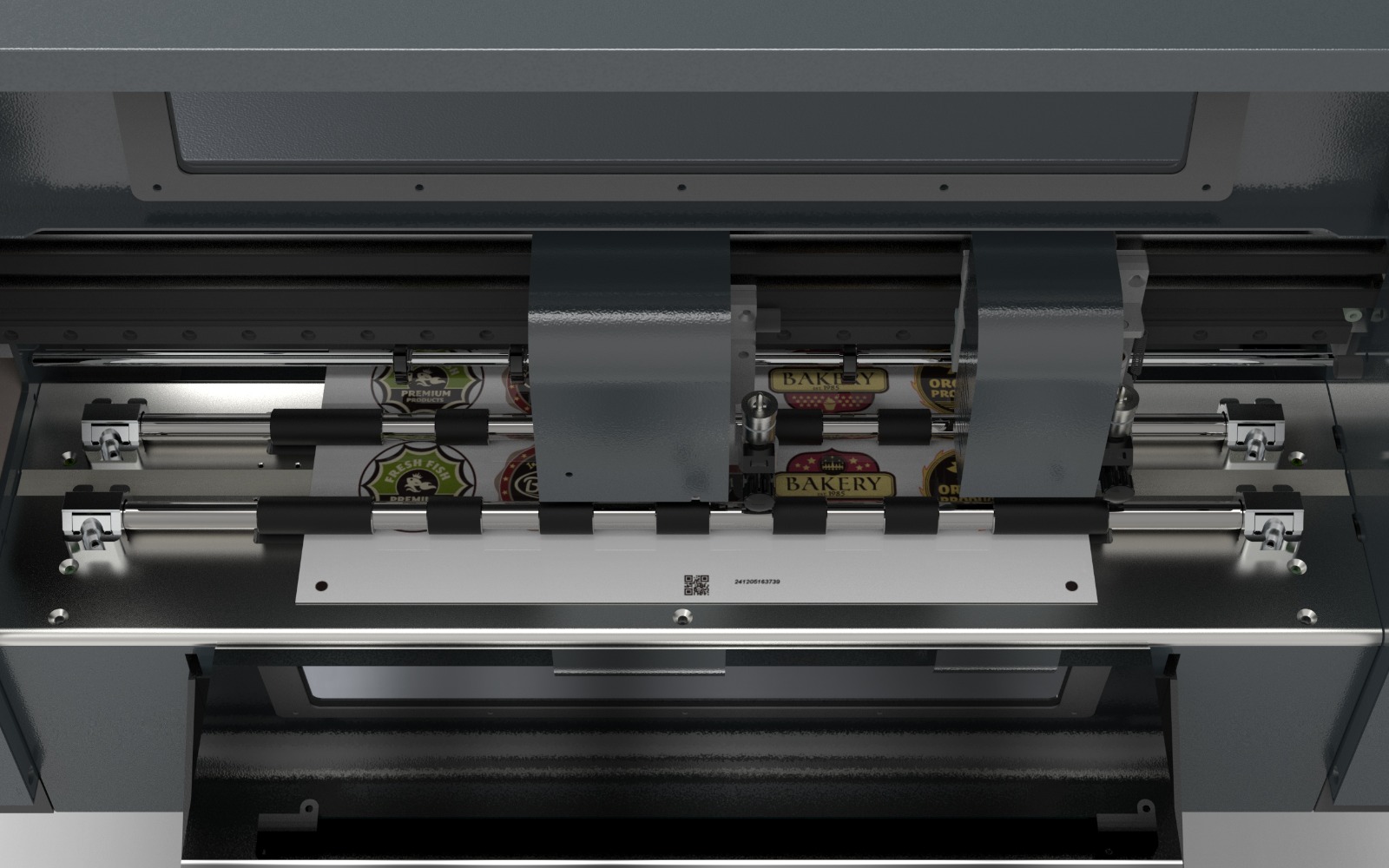

The A3 Max 6 has two carriages that work at the same time, each with its own tool holder, so a full sheet is finished faster than on a single-carriage plotter. The servo motor reaches 1600 mm/s, and the feeder holds up to 180 sheets.
With up to 2000 g of force it cuts sticker paper, vinyl sheets, laminated card, and industrial paper. It is about 53 kg packed. For long runs where you want to load more sheets at once, the A3 Max 5 1000-sheet auto feeder holds a much bigger stack.
Max Media Width
370mm
Max Cutting Width
350mm
Max Feeding Quantity
upto 180PCS
Number of tool heads
2 Heads(1 tool holder for each Carriage.
Motor
Servo Motor
Max Moving Speed
1600 mm/s
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 370mm |
| Max Cutting Width | 350mm |
| Max Feeding Quantity | upto 180PCS |
| Number of tool heads | 2 Heads(1 tool holder for each Carriage. |
| Motor | Servo Motor |
| Max Moving Speed | 1600 mm/s |
| Max Cutting Speed | 1600 mm/s |
| Max force | 2000g |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Power | < 100W |
| Working environment | +5°C - +35°C |
| Packing Size | 950x560x455mm |
| Packing Gross Weight | appx 53 kg |
The A3 Max 6 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
SKYCUT A3 MAX 6 Auto Feeder Cutting Plotter | Fast, Precise & Fully Automatic
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the A3 Max 6.
Product & Industry Labels
Product, packaging, food, and pharmaceutical labels — steady label cutting machine output with continuous auto feeding.
Stickers & Vinyl Sheets
Sticker sheets, vinyl decals, and logo stickers — fast dual carriage runs at the same time on this sheet cutting machine and die cutting machine.
Cards & Laminated Paper
Visiting cards, cardstock, and laminated sheets — 2000g force handles thicker stock on this sheet cutter.
Industrial Paper Cutting
High-volume paper and sheet finishing — an industrial paper cutting machine with automatic feeding for commercial production.
Business Opportunity
Earning With the A3 Max 6
What shops sell with the A3 Max 6, and the help you get from Skycut India after you buy.
What You Can Sell
Product labels, sticker sheets, tags, and cards finished in batches for brands and print customers.
Setup and Training
We help you set up the A3 Max 6 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the A3 Max 6.
Sticker paper, label stock, cardstock, and laminated paper. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
The published precision is 0.01mm.
Cutting width: 350mm. Media width: up to 370mm. Top speed: 1600 mm/s. Feeder: upto 180PCS. See the Specifications tab for the full list.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
