SKYCUT® Official

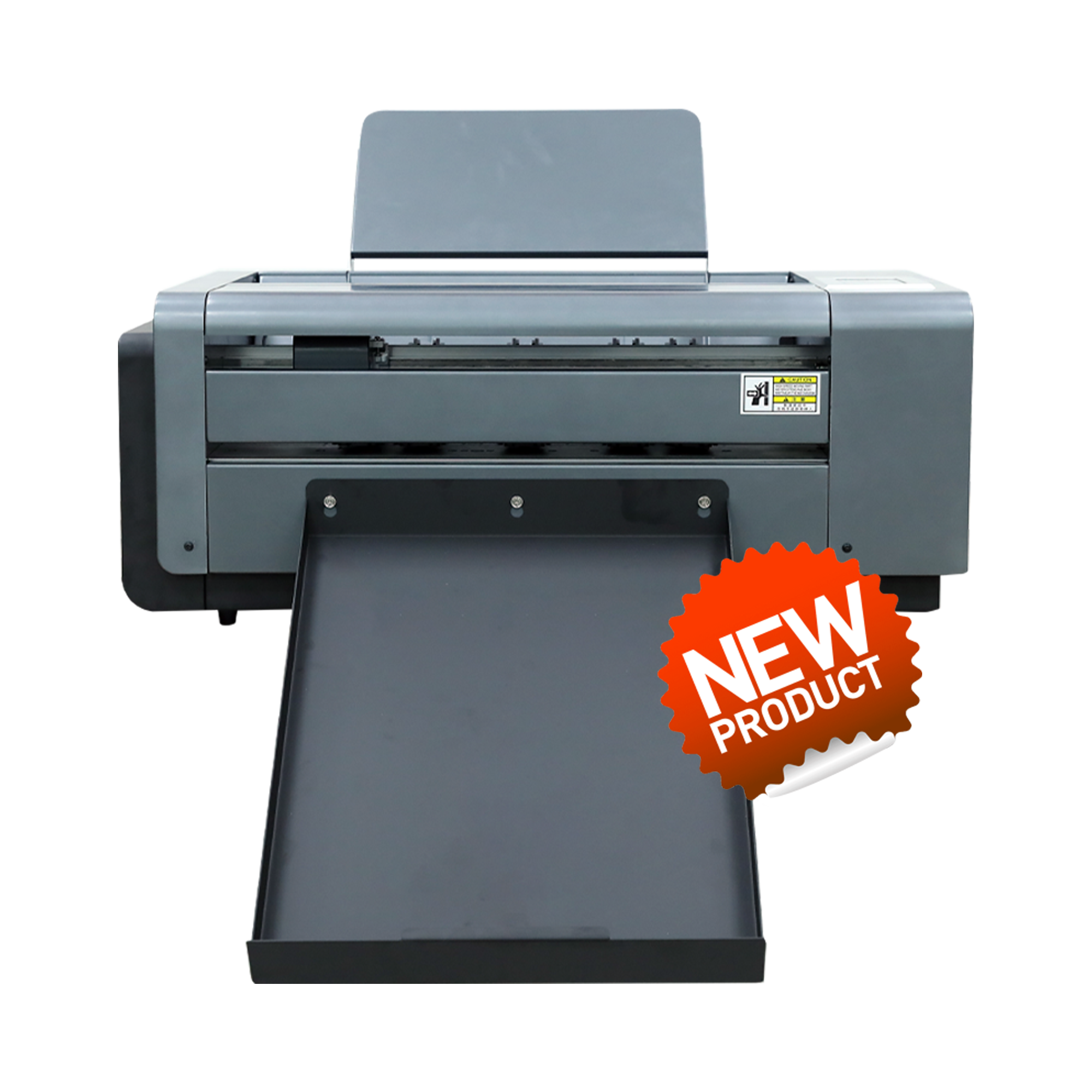

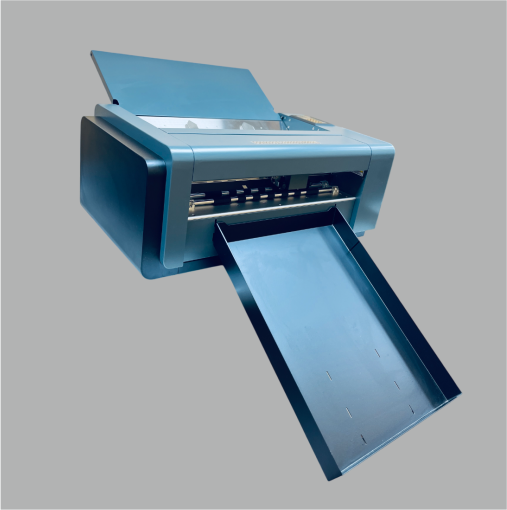

A3 Max 4 High Speed, Commercial Plotter
Dual Head Power for Faster, Sharper, Smarter Cutting with high-speed commercial performance.
A commercial A3 auto feeder with a servo motor at 1600 mm/s. Feeds up to 180 sheets and handles stock up to 400 GSM.
The A3 Max 4 Commercial is built for daily shop production. Its servo motor cuts at up to 1600 mm/s, the feeder holds up to 180 sheets, and it handles card stock up to 400 GSM with up to 2000 g of force.
Files go straight from CorelDRAW, and jobs can be sent by USB cable, U-disk, or Wi-Fi. If you want a rotary creasing tool for folded cards and boxes, compare it with the A3 MAX 4 PRO.
Max Media Width
340mm
Max Cutting Width
340mm
Max Feeding Quantity
upto 180PCS
Motor
Servo Motor
max thickness
400 GSM
CORALdraw
YES
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 340mm |
| Max Cutting Width | 340mm |
| Max Feeding Quantity | upto 180PCS |
| Motor | Servo Motor |
| max thickness | 400 GSM |
| CORALdraw | YES |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Cutting Speed | 1600mm/s |
| Max force | 2000g |
| Connector Interface | U-disk/WIFI/USB Cable |
| Power | < 100W |
| Working environment | +5°C - +35°C |
| Packing Size | 730*330*330mm |
| Packing Gross Weight | appx 50kg |
The A3 Max 4 Commercial works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Introducing Skycut A3 Max 4 Pro | New Rotary Creasing Tool + Dual-Head Precision
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the A3 Max 4 Commercial.
Sticker & Label Manufacturing
Die-cut sticker sheets, product labels, barcode labels, and promotional decals — the core strength of this automatic sticker cutting machine for converters and brand studios.
Cards, Tags & Stationery
Business cards, wedding invitations, hang tags, and product tags cut to size with consistent margins — ideal for print shops offering same-day card finishing.
Packaging Samples & Box Making
Folding carton prototypes, packaging mock-ups, and creased box samples — a practical packaging cutting machine for designers and packaging manufacturers.
Digital Print Finishing
Finish digitally printed sheets from UV, eco-solvent, or laser printers — trim, kiss-cut, and crease in one pass for agencies and commercial print houses.
Business Opportunity
Earning With the A3 Max 4 Commercial
What shops sell with the A3 Max 4 Commercial, and the help you get from Skycut India after you buy.
What You Can Sell
Product labels, sticker sheets, tags, and cards finished in batches for brands and print customers.
Setup and Training
We help you set up the A3 Max 4 Commercial and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the A3 Max 4 Commercial.
Sticker paper, label stock, cardstock, and laminated paper. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, and you can send jobs straight from CorelDRAW. Ask us which software comes with your order.
The published precision is 0.01mm.
Cutting width: 340mm. Top speed: 1600mm/s. Feeder: upto 180PCS. See the Specifications tab for the full list.
It connects over U-disk, Wi-Fi, USB Cable.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
