New
SKYCUT® Official
A3 MAX 4 PRO High Speed Auto Feeder Cutting Plotter
1600 mm/s servo auto feeder with dual-head cut, rotary creasing, and camera contour cutting.
An A3 auto feeder with a dual head: a blade plus a rotary creasing tool. Feeds up to 180 sheets at 1600 mm/s with 3000 g of force.
The A3 MAX 4 PRO cuts and creases in one pass. One head holds the blade and the other holds a rotary creasing tool, so packaging samples and folded cards come out scored and cut. With up to 3000 g of force it handles board as well as sticker stock.
The servo motor reaches 1600 mm/s, the feeder holds up to 180 sheets, and the camera contour-cuts printed sheets. For the fastest A3 cutting and creasing, see the A3 MAX 7-Pro at 1800 mm/s.

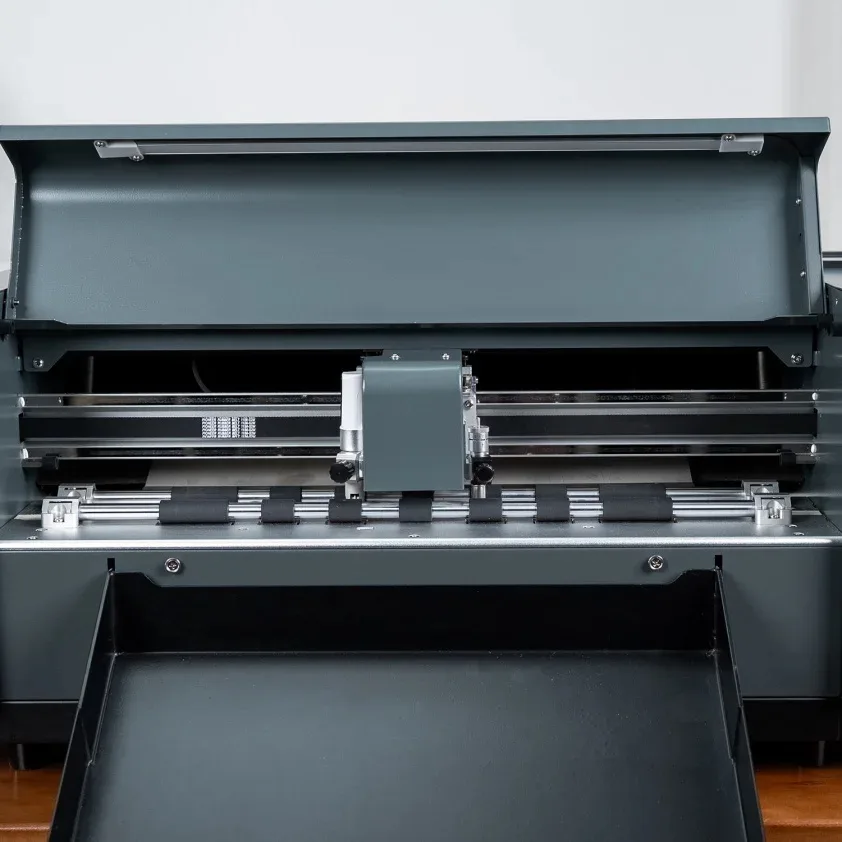

High-Speed Auto Feeder
Servo cutting at 1600 mm/s with intelligent auto feeding from the sheet stack.

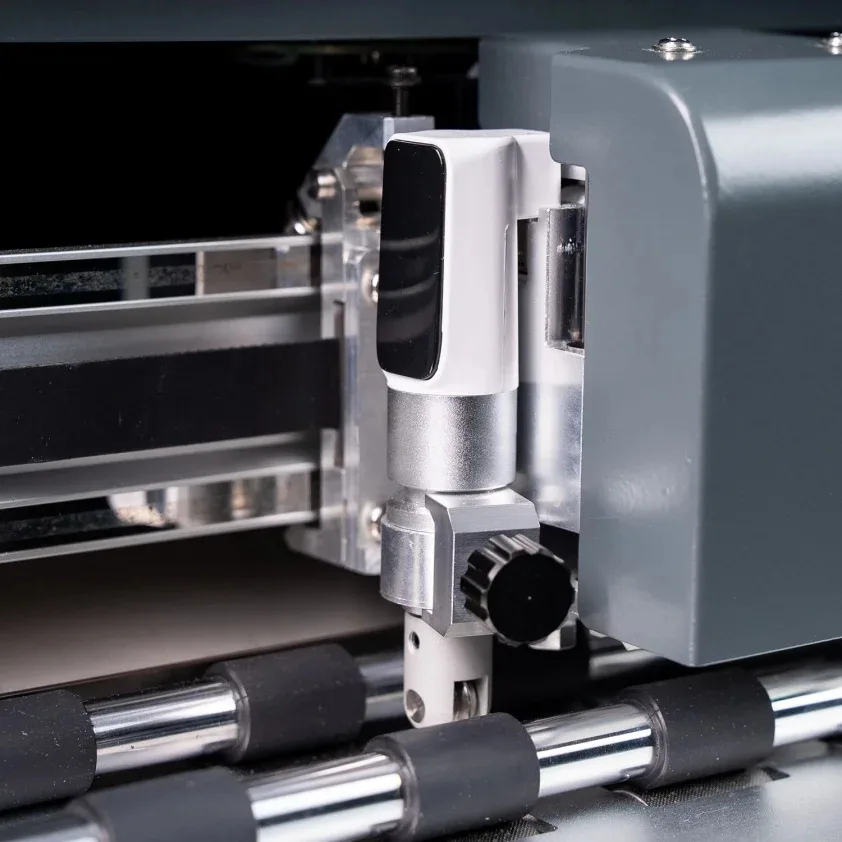

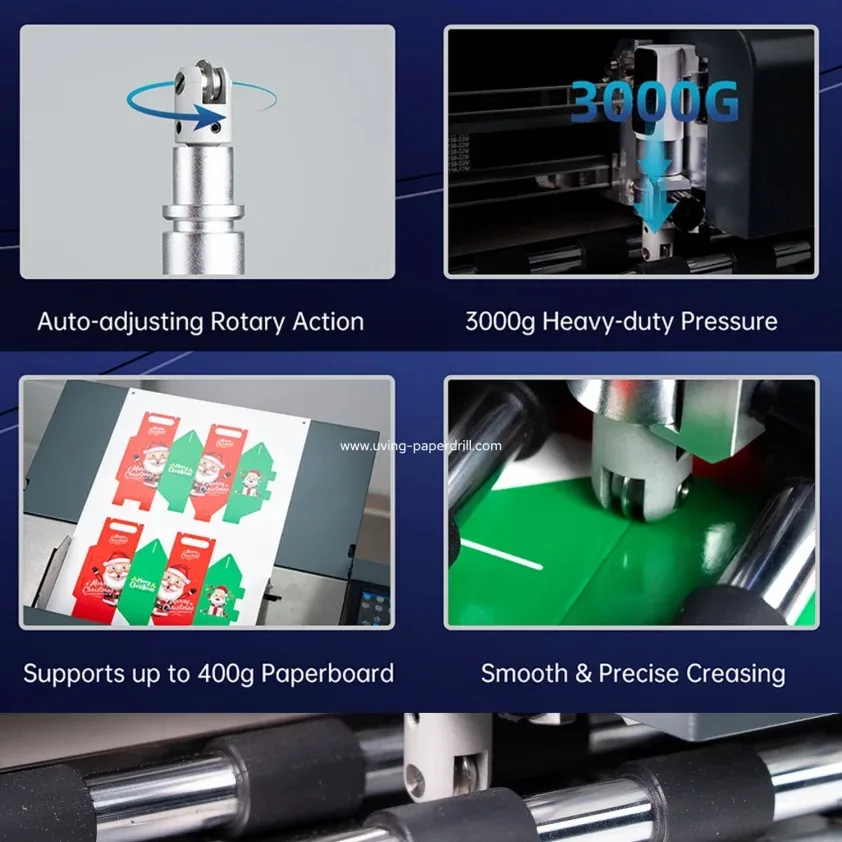

Dual-Head Cut and Crease
Cutting blade and rotary creasing tool on one carriage for half cut, full cut, and fold lines.
Camera Contour Cut
CCD camera reads registration marks for outline cuts on printed jobs.

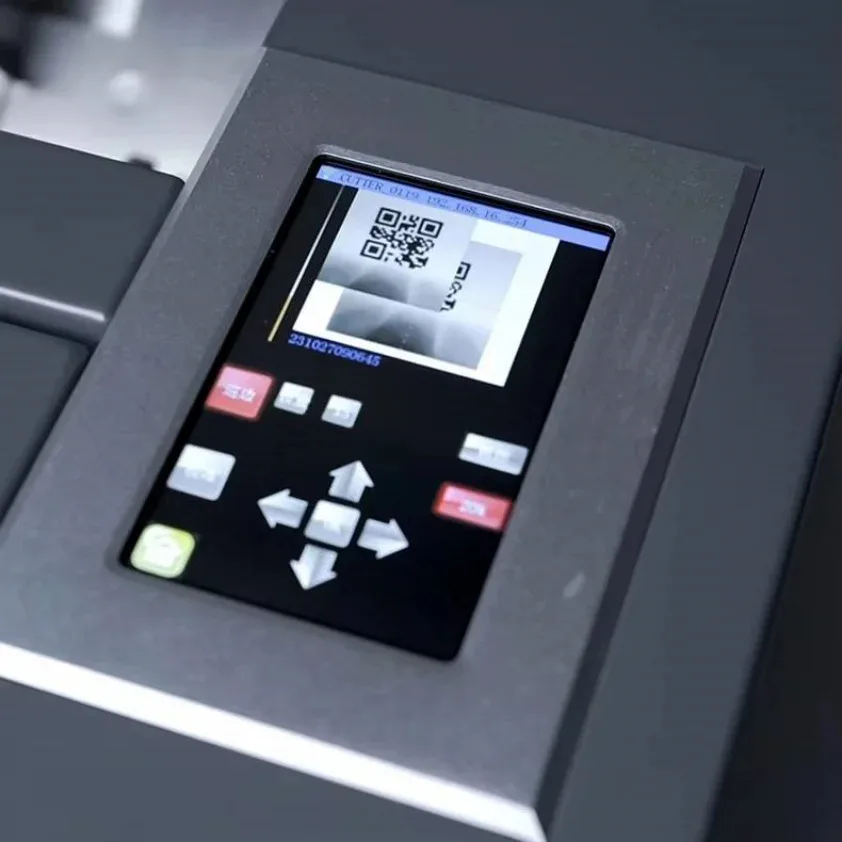

Touchscreen Connectivity
USB, Wi-Fi, and Ethernet for CorelDRAW, Illustrator, and a shop network.
Compatible Software
| Specification | Details |
|---|---|
| Product | SKYCUT A3 Max 4 Pro |
| Max Media Width | 370 mm |
| Max Cutting Width | 350 mm |
| Max Feeding Quantity | Up to 180 PCS |
| Cutting Precision | ±0.01 mm |
| Repeat Precision | 0.082 mm |
| Max Cutting Speed | 1600 mm/s |
| Max Force | 3000 g |
| Connector Interface | USB / Wi-Fi / USB Cable |
| Power | < 100 W |
| Working Environment | +5°C – +35°C |
| Packing Size | 780 × 570 × 530 mm |
| Packing Gross Weight | Approx. 50 kg |
| Number of Heads | Dual head |
The A3 MAX 4 PRO works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with CorelDRAW, Adobe Illustrator, and the Skycut cutting software.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- USB, Wi-Fi, and Ethernet connections for the shop network.
- Ask for a demo if you want the auto feeder shown on your material.
A3 MAX 4 PRO High Speed Auto Feeder demonstration
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the A3 MAX 4 PRO.
Product & Industry Labels
Product, packaging, food, cosmetic, and pharmaceutical labels with continuous auto feeding for brands and converters.
Barcode, QR & Shipping Labels
Barcode labels, QR tags, shipping labels, and price tags with clean readable cuts for retail and logistics.
Packaging & Box Samples
Folding carton prototypes, invitation cards, and creased box samples cut and creased with the rotary tool in one pass.
Stickers & Print Finishing
Vinyl stickers, die-cut decals, logo stickers, and digitally printed sheets on high-speed auto feeder runs.
Business Opportunity
Earning With the A3 MAX 4 PRO
What shops sell with the A3 MAX 4 PRO, and the help you get from Skycut India after you buy.
What You Can Sell
Product labels, sticker sheets, tags, and cards finished in batches for brands and print customers.
Setup and Training
We help you set up the A3 MAX 4 PRO and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the A3 MAX 4 PRO.
Sticker paper, label stock, cardstock, and laminated paper, plus thin board for packaging samples. Maximum cutting force is 3000 g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
The published precision is ±0.01 mm.
Cutting width: 350 mm. Media width: up to 370 mm. Top speed: 1600 mm/s. Feeder: Up to 180 PCS. See the Specifications tab for the full list.
It connects over USB, Wi-Fi, USB Cable.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
