New
SKYCUT® Official

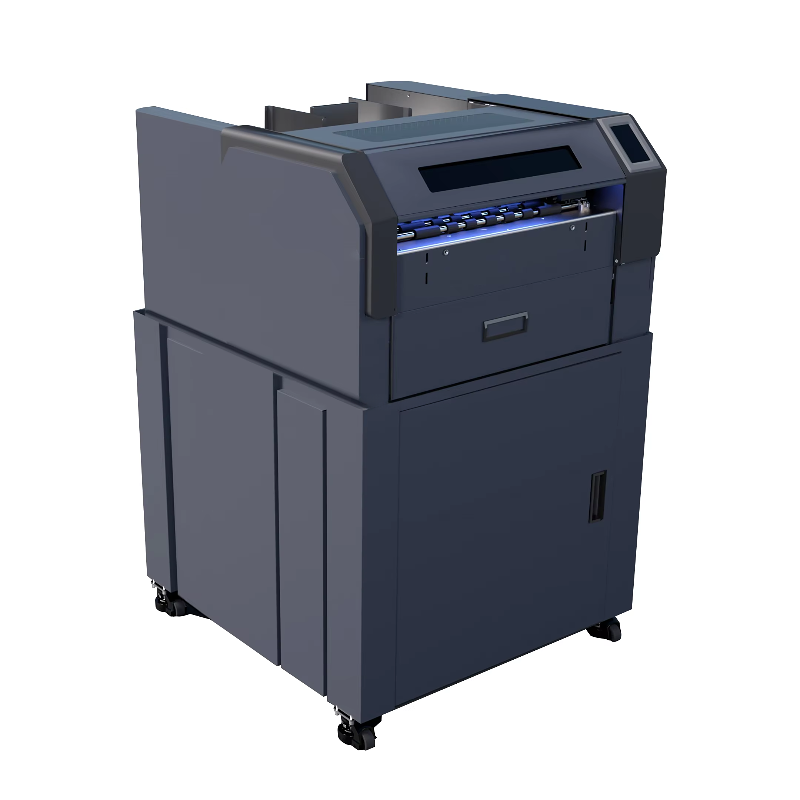

SKYCUT A3 Max 5 Pro-600 Auto Feeding Label Cutter
Industrial-Grade Auto-Feeding Plotter for High-Precision Cutting and Creasing.
Sky-cut A3 max auto feeder A3 max is a plotter, with 150 paper feeding at a time and auto contour cutting provided by sky-cut at affordable prices. Sky-cut A3 has ideal touch screen which provides you simple instructions to use, with multi interface.
Sky-cut A3 max auto feeder A3 max is a plotter, with 150 paper feeding at a time and auto contour cutting provided by sky-cut at affordable prices. Sky-cut A3 has ideal touch screen which provides you simple instructions to use, with multi interface.
Product
SKYCUT A3 Max 5 Pro-600
Max Media Width
600 mm
Max Cutting Width
580 mm

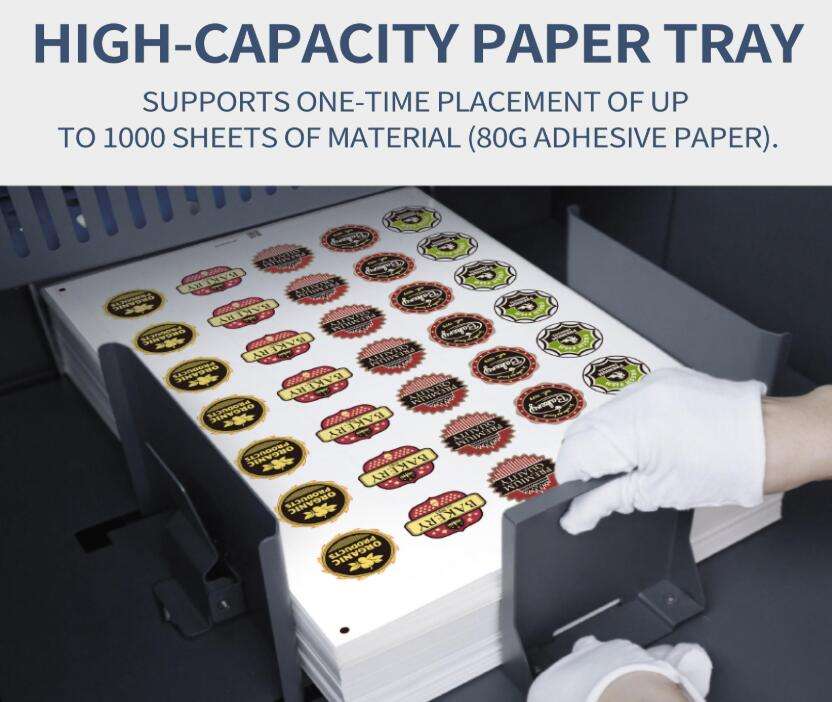

Max Feeding Quantity
Up to 1000 Sheets
Cutting Precision
±0.01 mm
Repeat Precision
0.082 mm
Compatible Software
| Specification | Details |
|---|---|
| Product | SKYCUT A3 Max 5 Pro-600 |
| Max Media Width | 600 mm |
| Max Cutting Width | 580 mm |
| Max Feeding Quantity | Up to 1000 Sheets |
| Cutting Precision | ±0.01 mm |
| Repeat Precision | 0.082 mm |
| Max Moving Speed | 1600 mm/s |
| Max Cutting Speed | 1600 mm/s |
| Maximum Force | 3000 g |

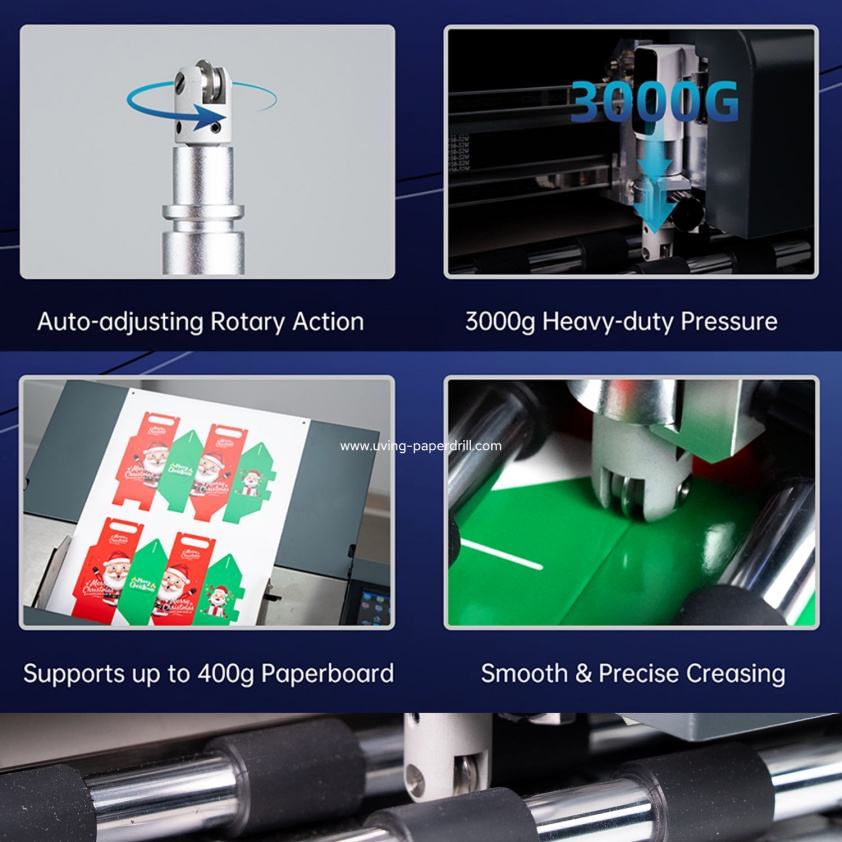

| Dual Head Function | Rotary Creasing + Cutting |
| Contour Cutting | Automatic Camera Detection |
| Interface | USB Cable / U-Disk / WiFi |
| Supported Software | CorelDRAW, Adobe Illustrator, SignMaster |
| Power Consumption | < 100W |
| Working Temperature | +5°C to +35°C |
| Packing Size | 870 × 867 × 645 mm |
| Gross Weight | Approx. 128 kg |
| Cabinet Size | 870 × 810 × 710 mm |
The A3 MAX 5 PRO - 600 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut A3 Max 5 Pro-600 | Auto-Feeder Cutting From A1 Size to A4 Size
Watch on YouTubeApplications
What You Can Create
Explore the endless possibilities with the A3 MAX 5 PRO - 600.
Stickers & Die-Cut Sheets
Die-cut stickers, kiss-cut sheets, promotional decals, and custom shapes — fast die cut sticker machine output with auto feeding.
Product & Packaging Labels
Food, cosmetic, pharmaceutical, bottle, jar, barcode, and QR labels — reliable packaging label cutting machine and product label cutter performance.
Cards, Tags & Folded Print
Business cards, greeting cards, invitations, hang tags, and folded brochures — rotary creasing machine folds with dual-head cutting on one greeting card cutting machine workflow.
Commercial Print Finishing
High-volume label and sheet finishing for agencies and digital print shops — a commercial cutting plotter and print and cut machine for daily production.
Business Opportunity
Start Your Cutting Business
The A3 MAX 5 PRO - 600 is your gateway to a profitable cutting and signage business.
Start Instantly
Set up your signage business in hours with the A3 MAX 5 PRO - 600. Professional software included.
High Margins
Signage and decals have 300-800% margins. Low material costs with premium selling prices.
Multiple Revenue Streams
Vehicle wraps, shop signs, window graphics, wall decals — diversify your income sources.
Expanding Market
Every business needs signage. From startups to corporates, the demand for custom graphics is endless.
Support
Frequently Asked Questions
Everything you need to know about the A3 MAX 5 PRO - 600.
The A3 MAX 5 PRO - 600 cuts vinyl, carbon fiber film, leather texture vinyl, matte/glossy films, color-changing films, and various adhesive-backed materials. It supports 3000 g for different material thicknesses.
Inbuilt software is included with the KARA-007 and CA-310 only. The A3 MAX 5 PRO - 600 works with SignMaster, CorelDRAW, Adobe Illustrator, and common design files such as AI, SVG, and PDF.
The built-in camera scans registration marks on the printed material, then the software automatically aligns and cuts precisely along the design contours. This enables perfect print-and-cut workflow without manual alignment.
The A3 MAX 5 PRO - 600 offers cutting speeds of 1600 mm/s with a cutting area of 600 mm. Machine weight is Approx. 128 kg.
The A3 MAX 5 PRO - 600 connects via USB Cable / U-Disk / WiFi, ensuring seamless integration with your existing workflow. It's compatible with popular design software including SignMaster, CorelDRAW, and Adobe Illustrator.
Absolutely! The A3 MAX 5 PRO - 600 is designed for ease of use. Training is included, and the machine works with SignMaster, CorelDRAW, and Adobe Illustrator. You can start producing professional output from Day 1.
