New
SKYCUT® Official

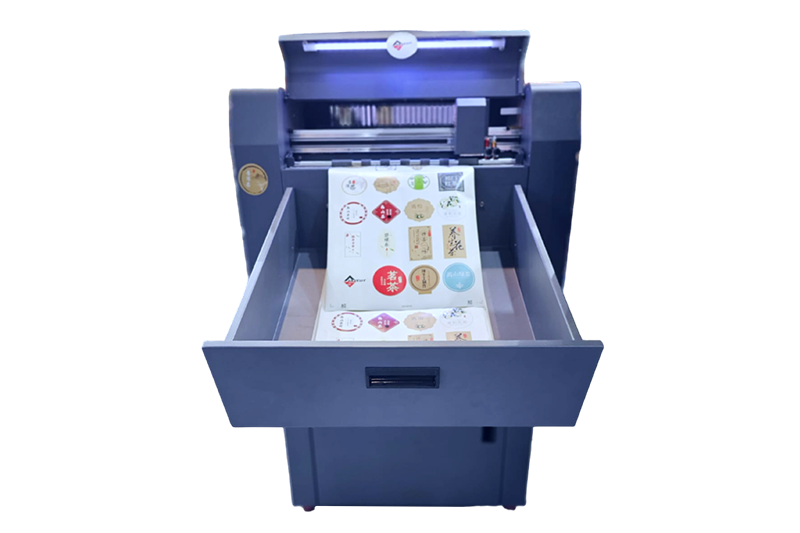

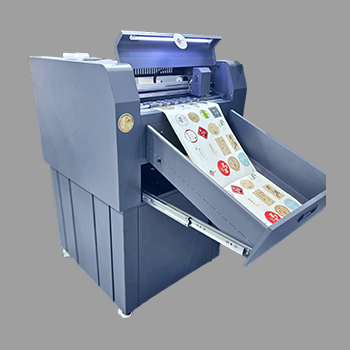

A3 Max 5 Auto-Feeder Cutting Plotter
Industrial-Grade Auto-Feeding Plotter for High-Precision Cutting and Creasing.
An A3 auto feeder that holds up to 1000 sheets, so long runs keep going without reloading. Cuts at 1200 mm/s with 2000 g of force.
The A3 Max 5 is about long, unattended runs. Its feeder holds up to 1000 sheets, so you load a stack in the morning and it keeps cutting while you handle other work. It cuts at up to 1200 mm/s with up to 2000 g of force.
It suits stickers, product labels, card, and box board up to A3 width, and connects over U-disk, Wi-Fi, or USB cable. For media up to 600 mm wide, look at the A3 Max 5 Pro-600.
Max Media Width
370mm
Max Cutting Width
370mm
Max Feeding Quantity
upto 1000PCS
Cutting Precision
0.01mm
Repeat Precision
0.082mm
Max Cutting Speed
1200mm/s
Compatible Software
| Specification | Details |
|---|---|
| Max Media Width | 370mm |
| Max Cutting Width | 370mm |
| Max Feeding Quantity | upto 1000PCS |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Cutting Speed | 1200mm/s |
| Max force | 2000g |
| Connector Interface | U-disk/WIFI/USB Cable |
| Power | < 100W |
| Working environment | +5°C - +35°C |
| Packing Size | 975*975*790mm |
| Packing Gross Weight | appx 40kg |
The A3 Max 5 works with design programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Inbuilt software is included with the KARA-007 and CA-310 only.
Design Features
- Works with the Skycut cutting software and common design files.
- Import artwork, set the cut path, and send the job to the machine.
Production Features
- Drivers and setup guidance are available from the downloads page.
- Ask for a demo if you want the software shown on your material.
Skycut A3 Max 5 Auto-Feeder Cutting Plotter | Dual Head Precision
Watch on YouTubeApplications
What You Can Create
Typical jobs our customers run on the A3 Max 5.
Rigid Boxes & Luxury Packaging
Rigid box samples, gift boxes, and premium packaging prototypes — cut and crease board panels on this box making machine for brand and luxury packaging work.
Folding Cartons & Mailer Boxes
Tuck-end boxes, mailers, and folding carton dielines — fast box making output with automatic feeding for packaging designers and converters.
Stickers & Product Labels
Die-cut stickers, kiss-cut sheets, food, cosmetic, and barcode labels — steady output alongside your box making plotter packaging workflow.
Cards & Print Finishing

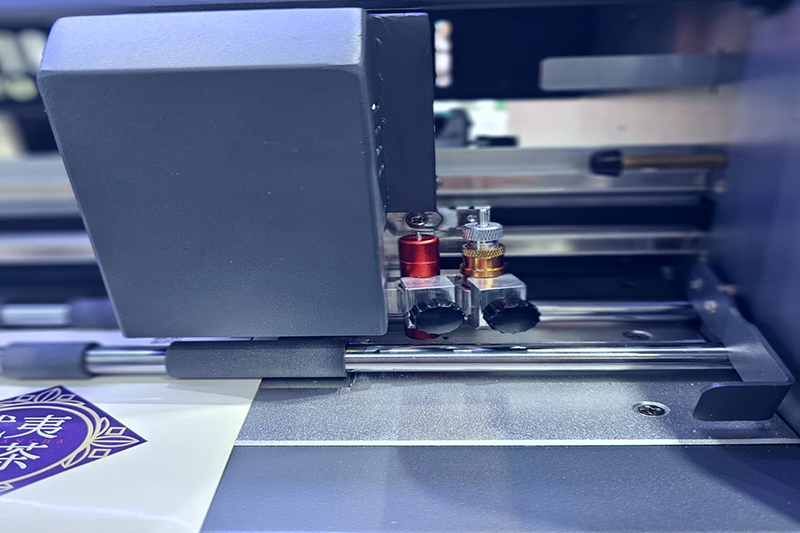

Business cards, greeting cards, invitations, and hang tags — dual-head cut and crease on this box making plotter for print shops and agencies.
Business Opportunity
Earning With the A3 Max 5
What shops sell with the A3 Max 5, and the help you get from Skycut India after you buy.
What You Can Sell
Product labels, sticker sheets, tags, and cards finished in batches for brands and print customers.
Setup and Training
We help you set up the A3 Max 5 and show you how to run your first jobs.
Know Your Costs
Material and blades are the main running costs. Tell us what you plan to make and we will help you work out the cost per piece.
Parts and Service
One-year warranty, spare parts and service from Skycut India, and support by phone and WhatsApp.
Support
Frequently Asked Questions
Everything you need to know about the A3 Max 5.
Sticker paper, label stock, cardstock, and laminated paper, plus thin board for packaging samples. Maximum cutting force is 2000g.
It works with cutting programs such as SignMaster, CorelDRAW, and Adobe Illustrator. Ask us which software comes with your order.
The published precision is 0.01mm.
Cutting width: 370mm. Top speed: 1200mm/s. Feeder: upto 1000PCS. See the Specifications tab for the full list.
It connects over U-disk, Wi-Fi, USB Cable.
Yes, with some practice. We help you set it up and train you on the jobs you plan to run.
A one-year warranty, plus support by phone and WhatsApp from Skycut India. Spare parts and service are handled by our team in India.
